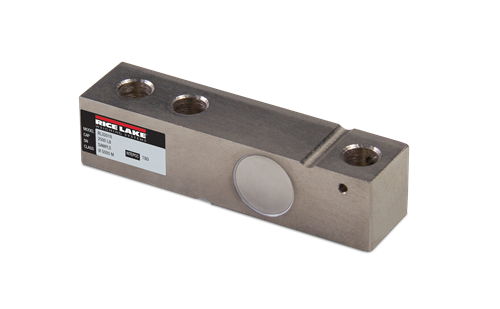

Rice Lake RL32018 Coated Alloy Steel, Single-Ended Beam Load Cell

$0.00

An alloy steel single-ended beam cell offered from 250 lb to 20,000 lb. Each load cell has 20 ft of cable and is FM approved and NTEP Certified from 500 lb to 10,000 lb.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V ±0.05%
mV/V/ohm calibration

Output Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Alloy steel, nickel plated

Temperature:
Compensated range
-14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohm

 Deflection:
0.2 to 0.4 mm

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
NTEP 18-106
cFMus FM18US0307X

Options

NTEP Certified

189152 Load Cell,SEB RL32018- 1000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66

191732 Load Cell, SEB RL32018 1500lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189153 Load Cell,SEB RL32018- 2000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189154 Load Cell,SEB RL32018- 2500lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189155 Load Cell,SEB RL32018- 3000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189156 Load Cell,SEB RL32018- 4000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189157 Load Cell,SEB RL32018- 5000LBSE 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189158 Load Cell,SEB RL32018- 5000lbLE 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189159 Load Cell,SEB RL32018- 10000lb 20ft 3mv/v 350 Ohm NTEP III 5M Alloy FM WW IP66
189151 Load Cell,SEB RL32018- 500lb 20ft 3mv/v 350 Ohm Alloy FM WW IP66



Non-NTEP Certified

189150 Load Cell,SEB RL32018- 250lb 20ft 3mv/v 350 Ohm Alloy FM WW IP66
189160 Load Cell,SEB RL32018- 15000lb 20ft 3mv/v 350 Ohm Alloy FM WW IP66
189161 Load Cell,SEB RL32018- 20000lb 20ft 3mv/v 350 Ohm Alloy FM WW IP66



Overbraid Cable

209166 Load Cell, SEB RL32018RP 2.5k 2500lb 20ft stainless over braid 3mv/v 350 Ohm Alloy FM NTEP 5S/III
197558 Load Cell,SEB RL32018RP 20k 20,000lb 20ft overbraid 3mv/v 350 Ohm Alloy WW IP67 FM
