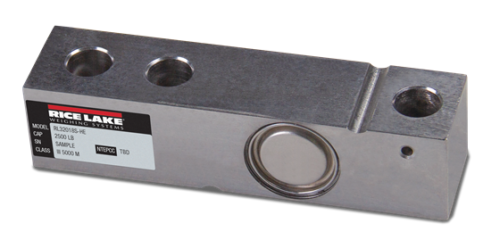

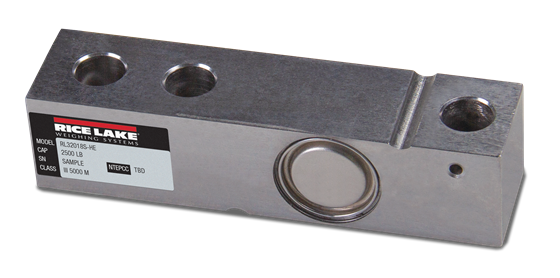

Rice Lake RL32018S-HE Stainless Steel, Single-Ended Beam

$0.00

The Rice Lake RL32018S-HE Stainless Steel, Single-Ended Beam is a hermetically sealed, stainless steel single-ended beam load cell with 20 feet of PTFE jacketed cables for protection in harsh environments. Sealed to IP69K standards, 3 mV/V and NTEP approved from 1,000 to 10,000 pounds.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V ?0.05% current matched

Output Resistance:
350 (? 3) ohm

Input Resistance:
400 (? 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range: 14? F to 104? F/-10? C to 40? C
Operating range: 0? F to 150? F/-18? C to 65? C



Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohms

Cable Length:
20 ft (6.1 m) PTFE

Cable Color Code:
Red + Excitation
Black ? Excitation
Green + Signal
White ? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP

Models



189179 Load Cell,SEB RL32018S-HE 2500lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP69
189181 Load Cell,SEB RL32018S-HE 4000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP69
189182 Load Cell,SEB RL32018S-HE 5000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP69
189183 Load Cell,SEB RL32018S-HE 10000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP69
