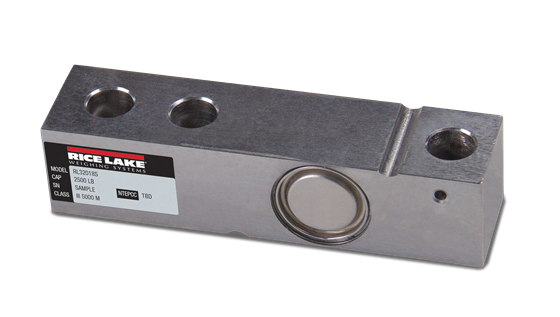

Rice Lake RL32018S Stainless Steel, Single-Ended Beam

$0.00

The Rice Lake RL32018S Stainless Steel, Single-Ended Beam stainless steel load cell is available in capacities from 250 to 20,000 pounds. Sealed to IP66 standards, each cell includes 20 feet of cable and is FM approved. NTEP approved from 1,000 to 10,000 pounds.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
400 (? 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range: 14? F to 104? F/-10? C to 40? C
Operating range: 0? F to 150? F/-18? C to 65? C



Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohms



Cable Length:
20 ft (6.1 m)

Cable Color Code:
Red + Excitation
Black ? Excitation
Green + Signal
White ? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP

Models

189162 Load Cell,SEB RL32018S- 250lb 20ft 3mv/v 350 Ohm FM WW IP67 SST
189163 Load Cell,SEB RL32018S- 500lb 20ft 3mv/v 350 Ohm FM WW IP67 SST
189164 Load Cell,SEB RL32018S- 1000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SST
189166 Load Cell,SEB RL32018S- 2500lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SST
189167 Load Cell,SEB RL32018S- 4000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SST
189168 Load Cell,SEB RL32018S- 5000LBSE 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SST
189169 Load Cell,SEB RL32018S- 5000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SST
189170 Load Cell,SEB RL32018S- 10000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SST
189172 Load Cell,SEB RL32018S- 20000lb 20ft 3mv/v 350 Ohm FM WW IP67 SST
189176 Load Cell,SEB RL32018S-HE 1000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP69
