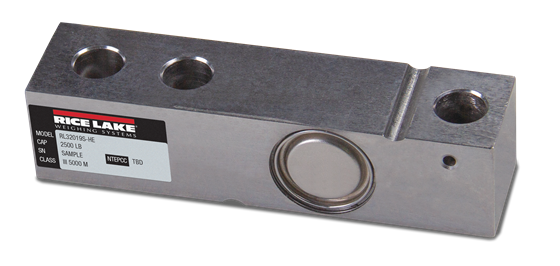

Rice Lake RL32019S-HE Stainless Steel, Single-Ended Beam

$0.00

The Rice Lake RL32019S-HE Stainless Steel, Single-Ended Beam is a stainless steel single-ended beam with 2 mV/V and 30 feet of PTFE jacketed cables. Hermetically sealed to IP69K for tough environments. Available from 1,000 to 10,000 pounds.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V ?0.05% current matched

Output Resistance:
350 (? 3) ohm

Input Resistance:
400 (? 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range:
14? F to 104? F/-10? C to 40? C
Operating range:
0? F to 150? F/-18? C to 65? C

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohms

Cable Length:
30 ft (9.2 m) PTFE

Cable Color Code:
Red +Excitation
Black ?Excitation
Green +Signal
White ?Signal

Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP

Models

191629 Load Cell,SEB RL32019S-HE 1000lb 30ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69
191630 Load Cell,SEB RL32019S-HE 2500lb 30ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69
191631 Load Cell,SEB RL32019S-HE 4000lb 30ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69
191632 Load Cell,SEB RL32019S-HE 5000lb 30ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69
191633 Load Cell,SEB RL32019S-HE 10000lb 30ft PTFE cable 2mv/v 350 Ohm NTEP III 5M FM WW IP69
