Home / Load Cells / RiceLake / Rice Lake RL32022 Alloy Steel, Single-Ended Beam Load Cell

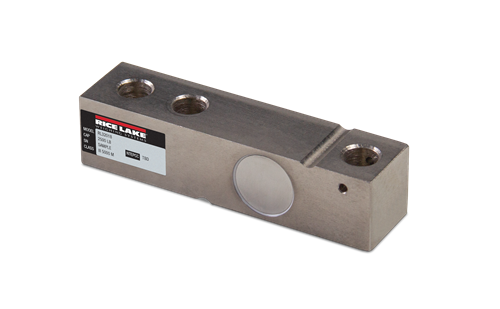

Rice Lake RL32022 Alloy Steel, Single-Ended Beam Load Cell $ 0.00
Download product PDF
Features
The RL32022 is a metric version of the RL32018 load cell. Constructed of alloy steel and OIML approved, this load cell’s capacities range from 300 kg to 2,000 kg. It is sealed to IP67 standards and includes 5 m of cable.
Specifications
Full Scale Output:
2.0 mV/V ±0.05%
mV/V/ohm calibration
Output Resistance:
350 (± 3) ohm
Input Resistance:
400 (± 20) ohm
Material/Finish:
Alloy steel, nickel plated
Temperature:
Compensated range
-14 °F to 104 °F (-10° C to 40° C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type:
Environmentally sealed, IP67
Safe Overload:
150% full scale
Safe Sideload:
100% full scale
Rated Excitation:
10 VDC (15 V maximum)
Combined Error:
0.017% full scale
Insulation Resistance:
>5,000 megohm
Deflection:
0.2 to 0.4 mm
Cable Length:
5 m
Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Warranty:
Two-year limited
Approvals:
OIML R60/2017-A-NL1-22.11
Options
211630
Load Cell, SEB RL32022 300kg 2mv 350 Ohm 5m Alloy Steel C3 OIML IP67
211631
Load Cell, SEB RL32022 500kg 2mv 350 Ohm 5m Alloy Steel C3 OIML IP67
211632
Load Cell, SEB RL32022 750kg 2mv 350 Ohm 5m Alloy Steel C3 OIML IP67
211633
Load Cell, SEB RL32022 1000kg 2mv 350 Ohm 5m Alloy Steel C3 OIML IP67
211634
Load Cell, SEB RL32022 1500kg 2mv 350 Ohm 5m Alloy Steel C3 OIML IP67
211635
Load Cell, SEB RL32022 2000kg 2mv 350 Ohm 5m Alloy Steel C3 OIML IP67
