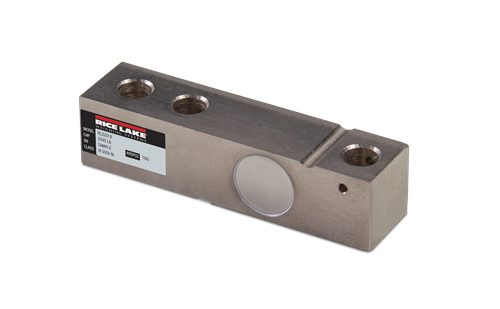

Rice Lake RL32022S Stainless Steel, Single-Ended Beam Load Cell

$0.00

Download product PDF
Categories: ,

Features

This stainless steel load cell is the metric version of the RL32018S. Sealed to IP67 standards, load cell capacities range from 300 kg to 5,000 kg. OIML approved and comes with 5 m of cable.

Specifications

Full Scale Output:
2.0 mV/V ±0.05%
mV/V/ohm calibrationOutput Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
-14 °F to 104 °F (-10° C to 40° C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Hermetically sealed, IP69KSafe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohm

 Deflection:
0.2 to 0.4 mmCable Length:
5 m

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
OIML

Options

211636 Load Cell, SEB RL32022-S 300kg 2mv 350 Ohm 5m Stainless Steel C3 OIML IP69k
211637 Load Cell, SEB RL32022-S 500kg 2mv 350 Ohm 5m Stainless Steel C3 OIML IP69k
211638 Load Cell, SEB RL32022-S 750kg 2mv 350 Ohm 5m Stainless Steel C3 OIML IP69k
211639 Load Cell, SEB RL32022-S 1000kg 2mv 350 Ohm 5m Stainless Steel C3 OIML IP69k
211640 Load Cell, SEB RL32022-S 1500kg 2mv 350 Ohm 5m Stainless Steel C3 OIML IP69k
211641 Load Cell, SEB RL32022-S 2000kg 2mv 350 Ohm 5m Stainless Steel C3 OIML IP69k
211642 Load Cell, SEB RL32022-S 3000kg 2mv 350 Ohm 5m Stainless Steel C3 OIML THRU HOLE IP69k
211643 Load Cell, SEB RL32022-S 5000kg 2mv 350 Ohm 5m Stainless Steel C3 OIML THRU HOLE IP69k
