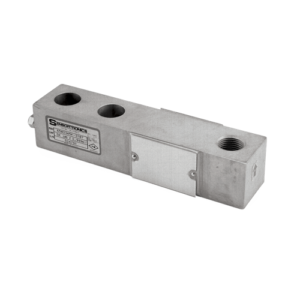

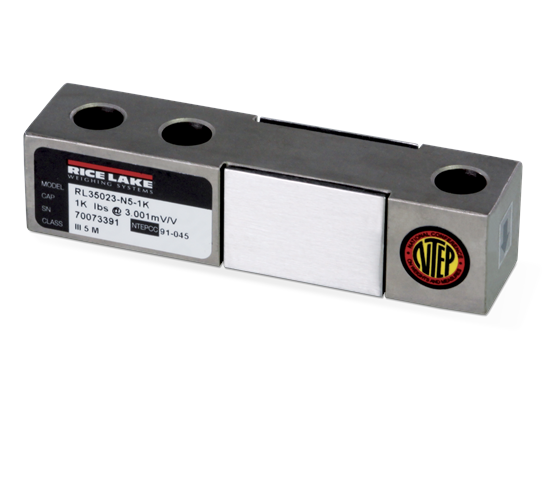

Rice Lake RL35023 Alloy Steel, Single-Ended Beam Load Cell

$0.00

The alloy steel, Rice Lake RL35023 single-ended beam load cell is designed for low-profile scales and a variety of process applications.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
349-355 ohm

Input Resistance:
343-357 ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.03% Full scale

Hysteresis:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
500 lb-1,000 lb=0.013 in (0.3 mm)
2,000 lb-3,000 lb=0.015 in (0.4 mm)
4,000 lb-5,000 lb=0.025 in (0.6 mm)
10,000 lb=0.035 in (0.9 mm)

Seal Type:
Environmentally sealed, IP67

Cable Length:
20 ft (6.1m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red………………….+ Excitation
Black…………………..? Excitation
Green …………………….+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus Approved
NTEP

Models

21528 Load Cell,SEB RL35023-N5- 1K 1000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67
21529 Load Cell,SEB RL35023-N5- 2K 2000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67
21530 Load Cell,SEB RL35023-N5- 2.5K 2500lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67
21531 Load Cell,SEB RL35023-N5- 3K 3000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67
21532 Load Cell,SEB RL35023-N5- 4K 4000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67
21535 Load Cell,SEB RL35023-N5- 5KSE 5000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 SE
21533 Load Cell,SEB RL35023-N5- 5KLE 5000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 LE.
21534 Load Cell,SEB RL35023-N5- 10K 10,000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67
