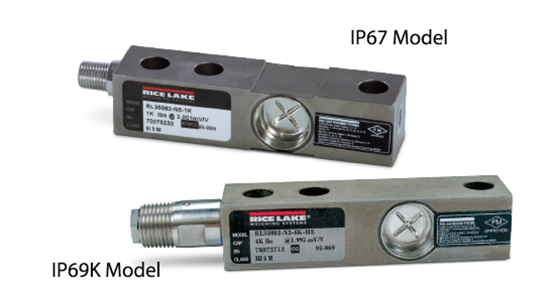

Rice Lake RL35082 Stainless Steel, Single-Ended Beam Load Cell

$0.00

Rice Lake RL35082 NTEP Certified, stainless steel, welded seal, single-ended beam load cell is a precision load cell offering exceptional performance and reliability in hostile environment applications typical of food and chemical processing.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
349-355 ohm

Input Resistance:
343-357 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02% Full scale

Non-Repeatability:
0.01% Full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
1,000 lb-4,000 lb = 0.012 in (0.33 mm)
5,000 lb-10,000 lb = 0.030 in (0.81 mm)

Seal Type:
Welded-seal, IP67
(Conduit is recommended for maximum protection against the ingress of water and?moisture through the cable entry)
Hermetic-seal, IP69K

Cable Length:
30 ft?(9.1 m); 20 ft (6.1 m)

Cable Diameter:
0.220 PTFE coated cable

Conduit Adapter Size:
IP67? 1/4-18 NPT
IP69K? ?1/2-14 NPT

Cable Color Code:
Red………………….+ Excitation
Black…………………..? Excitation
Green …………………….+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP
Waterproof Guaranteed

Models

31283 Load Cell,SEB RL35082- N5-1k 1,000lb 20ft 2mV/V 350 OHM NTEP Class III 5m WW SST WS IP67 with PTFE cable
31282 Load Cell,SEB RL35082- N5-2.5k 2,500lb 20ft 2mV/V 350 OHM NTEP Class III 5m WW SST WS IP67 with PTFE cable
31281 Load Cell,SEB RL35082- N5-4k 4,000lb 20ft 2mV/V 350 OHM NTEP Class III 5m WW SST WS IP67 with PTFE cable
31280 Load Cell,SEB RL35082- N5-5k 5,000lb 20ft 2mV/V 350 OHM NTEP Class III 5m WW SST WS IP67 with PTFE cable
31279 Load Cell,SEB RL35082- N5-10k 10,000lb 20ft 2mV/V 350 OHM NTEP Class III 5m WW SST WS IP67 with PTFE cable
