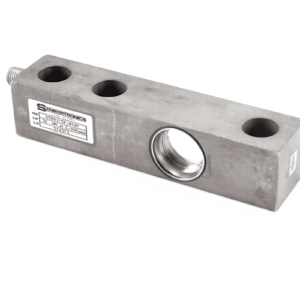

Rice Lake RL35083 Stainless Steel, Single-Ended Beam Load Cell

$0.00

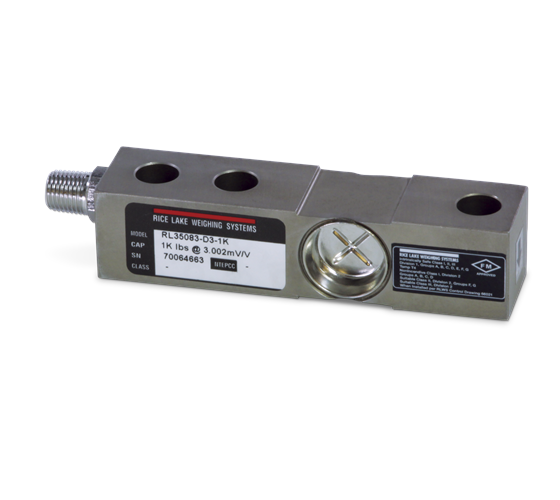

Rice Lake RL35083 stainless steel, welded seal single-ended beam is a precision load cell offering exceptional performance and reliability in hostile environment applications typical of food and chemical processing.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
349-355 ohm

Input Resistance:
343-357 ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% Full scale

Safe Sideload:?
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.03% Full scale

Non-Repeatability:
0.01% Full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
1,000 lb-4,000 lb=0.008 in-0.026 in?(0.203 mm-0.66 mm)
5,000 lb-10,000 lb=0.030 in-0.055 in?(0.76 mm-1.397 mm)

Seal Type:
Welded-seal strain gauge, IP67
(Conduit is recommended for maximum protection against the
ingress or water and? moisture through the cable entry)

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.220 PTFE coated cable

Conduit Adapter Size:
1/4-18 NPT

Cable Color Code:
Red…………………….+ Excitation
Black…………………..? Excitation
Green …………………+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus

Models

17252 Load Cell,SEB RL35083-D3- 1K 1000lb 20ft PTFE cable 3mv/v 350 Ohm WW IP67 SST WS with PTFE cable
17253 Load Cell,SEB RL35083-D3- 2.5K 2500lb 20ft PTFE cable 3mv/v 350 Ohm WW IP67 SST WS with PTFE cable
17254 Load Cell,SEB RL35083-D3- 4K 4000lb 20ft PTFE cable 3mv/v 350 Ohm WW IP67 SST WS with PTFE cable
17255 Load Cell,SEB RL35083-D3- 5K 5000lb 20ft PTFE cable 3mv/v 350 Ohm WW IP67 SST WS with PTFE cable
17256 Load Cell,SEB RL35083-D3- 10K 10,000lb 20ft PTFE cable 3mv/v 350 Ohm WW IP67 SST WS with PTFE cable
