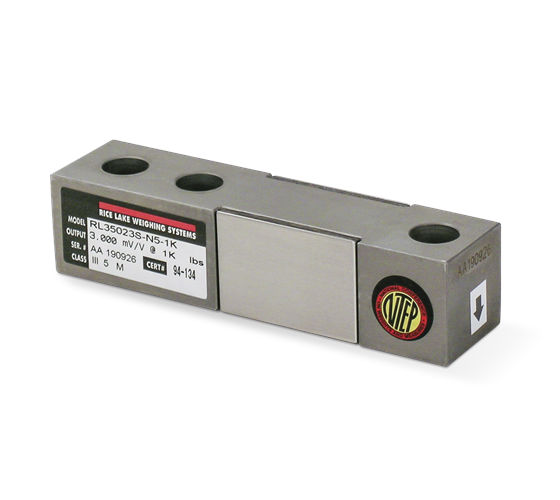

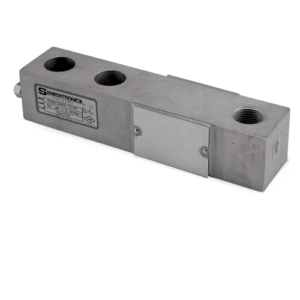

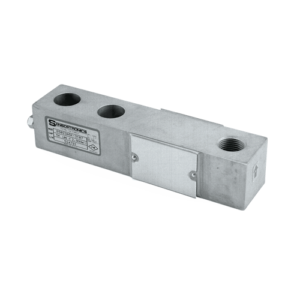

Rice Lake RL35023S Stainless Steel, Single-Ended Beam Load Cell

$0.00

The Rice Lake RL35023S stainless steel, single-ended beam load cell offers stainless steel construction for corrosion resistance and a variety of process applications.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
349-355 ohm

Input Resistance:
343-357 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.03% Full scale

Deflection at Capacity:
500 lb-1,500 lb=0.013 in (0.33 mm)
1,000 lb-5,000 lb=0.017 in-0.025 in (0.4318 mm-0.635 mm)
5,000 lb-10,000 lb=0.025 in-0.035 in (0.635 mm-0.889 mm)
15,000 lb-20,000 lb=0.048 in-0.013 in (1.2912 mm-0.3302 mm)

Seal Type:
Environmentally sealed, IP67

Cable Length:
20 ft (6.1m)

Cable Diameter:
0.200 polyurethane jacket

Cable Coloring:
Red………………….+ Excitation
Black…………………..? Excitation
Green …………………….+ Signal
White ………………….? Signal

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohms

Warranty:
Two-year limited warranty

Approvals:
cFMus Approved
NTEP

Models

30649 Load Cell,SEB RL35023S-N5 -1K 1,000 lb 20ft 3mV/V 350 OHM WW NTEP III 5 M SST IP67
30650 Load Cell,SEB RL35023S-N5 -2K 2,000lb 20ft 3mV/V 350 OHM WW NTEP III 5 M SST IP67
30651 Load Cell,SEB RL35023S-N5 -2.5K 2,500 lb 20ft 3mV/V 350 OHM WW NTEP III 5 M SST IP67
30652 Load Cell,SEB RL35023S-N5 -4K 4,000 lb 20ft 3mV/V 350 OHM WW NTEP III 5 M SST IP67
30653 Load Cell,SEB RL35023S-N5 -5K 5,000 lb 20ft 3mV/V 350 OHM WW NTEP III 5 M SST IP67
30654 Load Cell,SEB RL35023S-N5 -10K 10,000 lb 20ft 3mV/V 350 OHM WW NTEP III 5 M SST IP67
