Rice Lake RL40BBS Alloy Steel, Single-Ended Beam Load Cell

$0.00

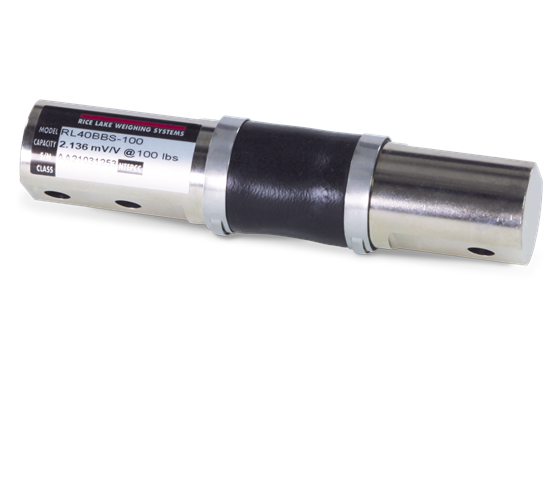

The Rice Lake RL40BBS single-ended beam, alloy steel load cell is designed for precision force and weight measurement.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Bridge Resistance:
50lb-1,000lb/750 ohm, nominal
2,500 lb/347 ohm, nominal

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Deflection at Capacity:
50 lb=0.015 in (0.38 mm)
100 lb=0.005 in (0.64 mm)
200 lb-250 lb=0.030 in (0.76 mm)
500 lb=0.020 in (0.51 mm)
1,000 lb=0.040 in (1.02 mm)
2,500 lb=0.120 in (3.05 mm)

Nonlinearity:
0.03% Full scale

Hysteresis:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed with neoprene sleeve, IP65

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White …………………….+ Signal
Red ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus

Models

17395 Load Cell,CLB RL40BBS-50 50lb 10ft 2mv/v 750 Ohm EW IP65
17343 Load Cell,CLB RL40BBS-100 100lb 10ft 2mv/v 750 Ohm EW IP65
17396 Load Cell,CLB RL40BBS-200 200lb 10ft 2mv/v 750 Ohm EW IP65
17397 Load Cell,CLB RL40BBS-250 250lb 10ft 2mv/v 750 Ohm EW IP65
17398 Load Cell,CLB RL40BBS-500 500lb 10ft 2mv/v 750 Ohm EW IP65
17344 Load Cell,CLB RL40BBS-1K 1000lb 10ft 2mv/v 750 Ohm EW IP65
17345 Load Cell,CLB RL40BBS- 2.5K 2500lb 10ft 2mv/v 350 Ohm EW IP65
