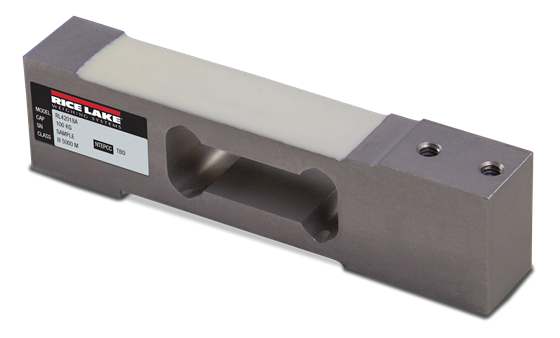

Rice Lake RL42018A Aluminum, Single Point Load Cell

$0.00

The Rice Lake RL42018A Aluminum, Single Point Load Cell is an aluminum single point load cell from Rice Lake. Offered in capacities from 3 to 100 kilograms, the RL42018A is NTEP and FM approved. It is sealed to IP66 and comes with 10 feet of cable.



Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V ?10%

Output Resistance:
350 (? 3) ohm

Input Resistance:
400 (? 20) ohm

Material/Finish:
Aluminum

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C



Safe Overload:
150% of full scale at center loading point

Rated Excitation:
10 VDC

Combined Error:
0.02% full scale
Insulation Resistance:
>5,000 megohms

Seal Type:
Environmentally sealed, IP66

Cable Length:
3.1 m (10 ft)



Cable Color Code:
Green + Excitation
Black ? Excitation
Red + Signal
White ? Signal
Blue + Sense
Yellow ? Sense

Platform Size:
15.75 in x 15.75 in max

Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP

Models

188672 Load Cell, SPT RL42018A 3kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
188673 Load Cell, SPT RL42018A 5kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
188674 Load Cell, SPT RL42018A 7kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
188675 Load Cell, SPT RL42018A 10kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
188676 Load Cell, SPT RL42018A 15kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
188677 Load Cell, SPT RL42018A 20kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
188678 Load Cell, SPT RL42018A 30kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
188679 Load Cell, SPT RL42018A 50kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
188680 Load Cell, SPT RL42018A 75kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
Load Cell, SPT RL42018A 100kg 10ft 2mv/v 350 Ohm NTEP III 5S Al FM IP66
