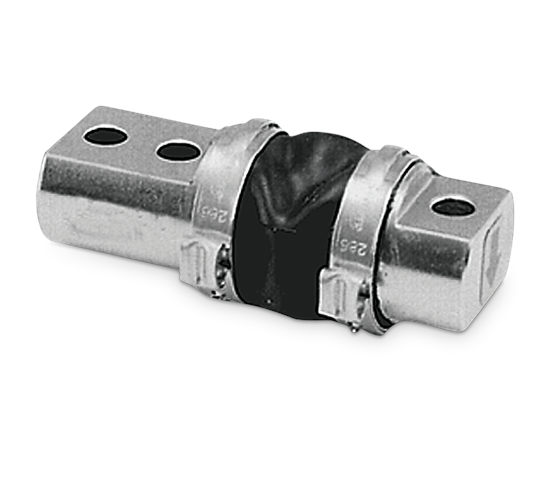

Rice Lake RL50210 Alloy Steel, Single-Ended Beam Load Cell

$0.00

The Rice Lake RL50210 single-ended beam, alloy steel load cell is designed for tension- or compression-loading applications.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
349-355 ohm

Input Resistance:
360-450 ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
25 lb-50 lb=0.008 in (0.20 mm)
100 lb=0.010 in (0.25 mm)
150 lb=0.012 in (0.30 mm)
250 lb=0.016 in (0.41 mm)
500 lb=0.025 in (0.64 mm)

Seal Type:
Environmentally sealed with neoprene sleeve, IP65

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red………………….+ Excitation
Black…………………..? Excitation
Green …………………….+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
us

Models

17385 Load Cell,CLB RL50210-25 25lb 20ft 3mv/v 350 Ohm WW IP65
17380 Load Cell,CLB RL50210-50 50lb 20ft 3mv/v 350 Ohm WW IP65
17381 Load Cell,CLB RL50210-100 100lb 20ft 3mv/v 350 Ohm WW IP65
17382 Load Cell,CLB RL50210-150 150lb 20ft 3mv/v 350 Ohm WW IP65
17383 Load Cell,CLB RL50210-250 250lb 20ft 3mv/v 350 Ohm WW IP65
17384 Load Cell,CLB RL50210-500 500lb 20ft 3mv/v 350 Ohm WW IP65
