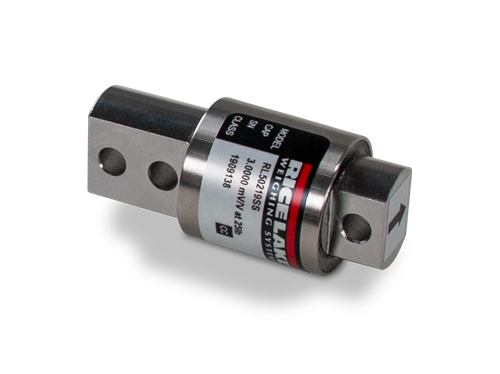

Rice Lake RL50219SS Stainless Steel, Single Ended Beam Load Cell

$0.00

A direct replacement for the RL50210SS stainless cantilever beam cell. It is an IP67 and comes with 20ft of cable. Used in the RL50210SS-TA weigh modules in capacities from 25 lb to 500 lb.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/VOutput Resistance:
350 (± 3) ohm

Input Resistance:
380 to 450 ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Environmentally sealed, IP67Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Combined Error:
0.017% full scale

 Insulation Resistance:
5,000 megohmCable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Options

194014 Load Cell, CLB RL50219SS 25lb 20ft 3mv/v 350 Ohm WW IP67 SST
194015 Load Cell, CLB RL50219SS 50lb 20ft 3mv/v 350 Ohm WW IP67 SST
194016 Load Cell, CLB RL50219SS 75lb 20ft 3mv/v 350 Ohm WW IP67 SST

194017 Load Cell, CLB RL50219SS 100lb 20ft 3mv/v 350 Ohm WW IP67 SST

194018 Load Cell, CLB RL50219SS 150lb 20ft 3mv/v 350 Ohm WW IP67 SST
194019 Load Cell, CLB RL50219SS 250lb 20ft 3mv/v 350 Ohm WW IP67 SST
194020 Load Cell, CLB RL50219SS 500lb 20ft 3mv/v 350 Ohm WW IP67 SST
