DISCONTINUED

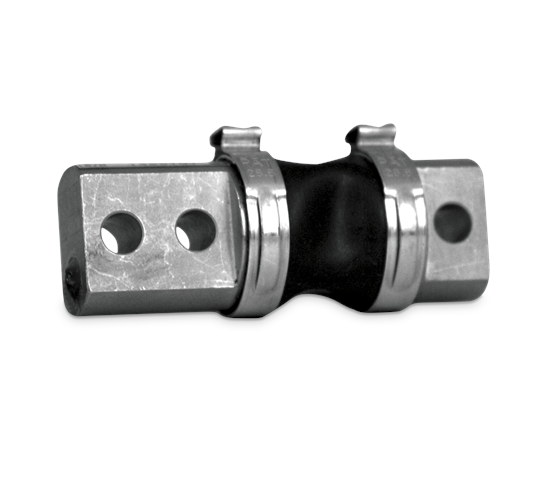

Rice Lake RL60040SST Stainless Steel, Single-Ended Beam Load Cell

Designed for tension or compression loading applications. Available in capacities 50 lb and 250 lb. Complete with 20 ft of load cell cable. Stainless steel construction.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
349-355 ohm

Input Resistance:
380-450 ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
25 lb-50 lb=0.008 in (0.20 mm)
100 lb=0.010 in (0.25 mm)
150 lb=0.012 in (0.3 mm)
250 lb=0.016 in (0.41 mm)
500 lb=0.025 in (0.64 mm)

Seal Type:
Environmentally sealed with neoprene sleeve, IP65

Cable Length:
20 ft (6.1 m)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red…………………….+ Excitation
Black…………………..? Excitation
Green …………………+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Models

101972 Load Cell,CLB RL60040SST- 25lb 20ft 3mv/v 350 Ohm WW IP65 SST Trimmed Output
Load Cell,CLB RL60040SST- 50lb 20ft 3mv/v 350 Ohm WW IP65 SST Trimmed Output
101974 Load Cell,CLB RL60040SST- 75lb 20ft 3mv/v 350 Ohm WW IP65 SST Trimmed Output
101975 Load Cell,CLB RL60040SST- 100lb 20ft 3mv/v 350 Ohm WW IP65 SST Trimmed Output
101976 Load Cell,CLB RL60040SST- 150lb 20ft 3mv/v 350 Ohm WW IP65 SST Trimmed Output
101977 Load Cell,CLB RL60040SST- 250lb 20ft 3mv/v 350 Ohm WW IP65 SST Trimmed Output
101978 Load Cell,CLB RL60040SST- 500lb 20ft 3mv/v 350 Ohm WW IP65 SST Trimmed Output
