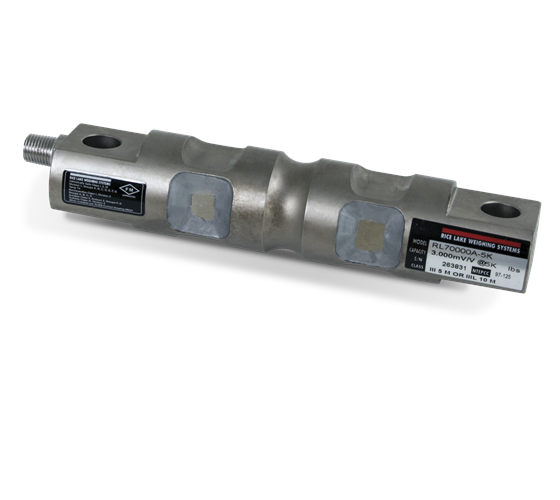

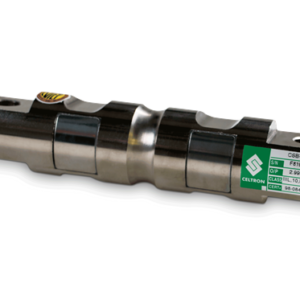

Rice Lake RL70000 Alloy Steel, Double-Ended Beam Load Cell

$0.00

The Rice Lake RL70000 Alloy Steel, Double-Ended Beam Load Cell with center loading is designed for truck, tank and hopper applications.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (? 5) ohm

Input Resistance:
770 (? 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14? F to 104? F/-10? C to 40? C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed, IP67

Deflection at Capacity:
5,000 lb=0.02 in (0.5 mm)
10,000 lb=0.025 in (0.6 mm)
20,000 lb=0.042 in (1.1 mm)
30,000-50,000 lb=0.02 in (0.5 mm)
60,000 lb=0.025 in (0.6 mm)
100,000 lb=0.02 in (0.5 mm)

Cable Length:
30 ft (9.1 m)

Cable Diameter:
5,000 lb-20,000 lb=0.200
30,000 lb-250,000 lb=0.305

Cable Color Code:
Red……………………..+ Excitation
Black……………………? Excitation
Green…………………..+ Signal
White…………………..? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
us
NTEP

Models

36263 Load Cell,DEB RL70000A-5K 5,000lb 30ft 3mV/V 700 OHM WW NTEP III 5/IIIL 10M FM IP67
36264 Load Cell,DEB RL70000A- 10K 10,000lb 30ft 3mV/V 700 OHM WW NTEP III 5/IIIL 10M FM IP67
36265 Load Cell,DEB RL70000C- 20K 20,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
36266 Load Cell,DEB RL70000C- 30K 30,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
36267 Load Cell,DEB RL70000C- 40K 40,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
36268 Load Cell,DEB RL70000C- 50K 50,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
36269 Load Cell,DEB RL70000C- 60K 60,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
36270 Load Cell,DEB RL70000C- 100k 100,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
36976 Load Cell,DEB RL70000C- 150k 150,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
36977 Load Cell,DEB RL70000C 200k 200,000lb 30ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
