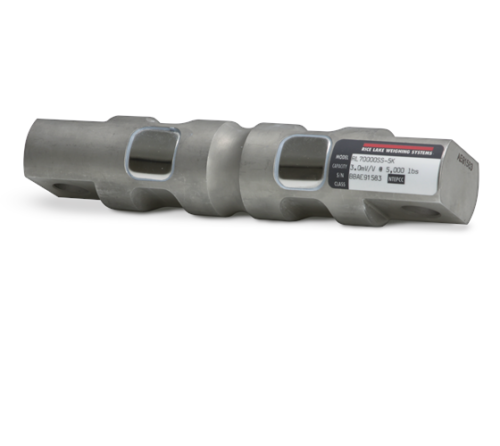

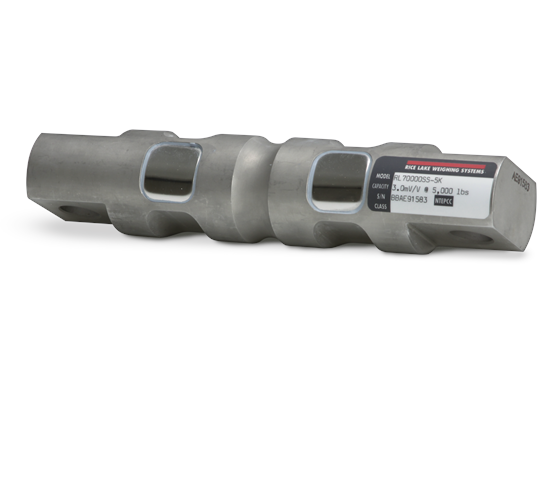

Rice Lake RL70000SS Stainless Steel, Double-Ended Beam Load Cell

$0.00

The Rice Lake RL70000SS double-ended beam, stainless steel load cell is designed for truck, track, and process weighing.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (? 7 ) ohm

Input Resistance:
700 (? 7) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
0?F to 150?F/-18?C to 65?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 V AC/DC (15 V max)

Non-repeatability:
0.02% full scale

Combined Error:
0.3% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
5,000 lb=0.02 in (0.5 mm)
10,000 lb=0.025 in (.6 mm)
20,000 lb=0.042 in (1.1 mm)
30,000 lb-50,000 lb=0.02 in (0.5 mm)
60,000 lb=0.025 in (0.6 mm)
100,000-150,000 lb=0.02 in (0.5 mm)

Seal Type:
Environmentally sealed, IP67

Cable Length:
5,000 lb-150,000 lb=30 ft (10 m)

Cable Diameter:
0.295

Cable Color Code:
Red…………………….+ Excitation
Black…………………..? Excitation
Green …………………+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

30432 Load Cell,DEB RL70000SS- 10K 10,000 lb 30ft 3mV/V 700 OHM NTEP III 5S/IIIL 10S WW SST FM IP67
30433 Load Cell,DEB RL70000SS- 20K 20,000 lb 30ft 700 OHM NTEP III 5M/IIIL 10M WW SST IP67 FM
30434 Load Cell,DEB RL70000SS- 30K 30,000 lb 30ft 3mV/V 700 OHM NTEP III 5S/IIIL 10S WW SST FM IP67
30435 Load Cell,DEB RL70000SS- 40K 40,000 lb 30ft 3mV/V 700 OHM NTEP III 5S/IIIL 10S WW SST FM IP67
30436 Load Cell,DEB RL70000SS- 50K 50,000 lb 30ft 3mV/V 700 OHM NTEP III 5S/IIIL 10S WW SST FM IP67
30437 Load Cell,DEB RL70000SS- 60K 60,000 lb 30ft 3mV/V 700 OHM NTEP III 5M/IIIL 10M SST FM IP67
30444 Load Cell,DEB RL70000SS- 100K 100,000 lb 30ft 3mV/V 700 OHM NTEP III 5S/IIIL 10S WW SST FM IP67
