DISCONTINUED

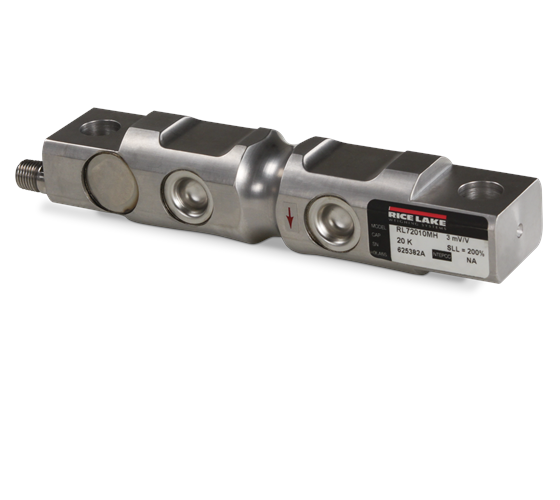

Rice Lake RL72010MH Stainless Steel, Double-Ended Beam Load Cell

The hermetically-sealed, stainless steel RL72010MH double-ended beam load cell is an ideal replacement for the RL71000 HE and RL70000 SS when moisture is a concern.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V, nominal

Output Resistance:
700 ?5 ohm

Input Resistance:
780 ?10 ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Sideload:
100% full scale

Non Linearity:
0.03% full scale

Hysteresis:
0.05% full scale

Rated Excitation:
5-15 VDC

Insulation Resistance:
5,000 megohms

Cable Diameter:
0.190 polyurethane jacket

Cable Color Code:
Red………………….+ Excitation
Black…………………? Excitation
Green ……………….+ Signal
White…………………? Signal
Orange …………….. Shield

Seal Type:
Hermetically sealed, IP68

Cable Length:
25 ft (7.6 m)

Warranty:
Two-year limited warranty

Approvals:
FM

Models

118462 Load Cell,DEB RL72010MH 5K 5000lb 25ft 3mv/v 700 Ohm WW SST HS FM IP68
118463 Load Cell,DEB RL72010MH 10K 10,000lb 25ft 3mv/v 700 Ohm WW SST HS FM IP68
118464 Load Cell,DEB RL72010MH 20K 20,000lb 25ft 3mv/v 700 Ohm WW SST HS FM IP68
118465 Load Cell,DEB RL72010MH 30K 30,000lb 25ft 3mv/v 700 Ohm WW SST HS FM IP68
118466 Load Cell,DEB RL72010MH 40K 40,000lb 25ft 3mv/v 700 Ohm WW SST HS FM IP68
118467 Load Cell,DEB RL72010MH 50K 50,000lb 25ft 3mv/v 700 Ohm WW SST HS FM IP68
118468 Load Cell,DEB RL72010MH 60K 60,000lb 25ft 3mv/v 700 Ohm WW SST HS FM IP68
