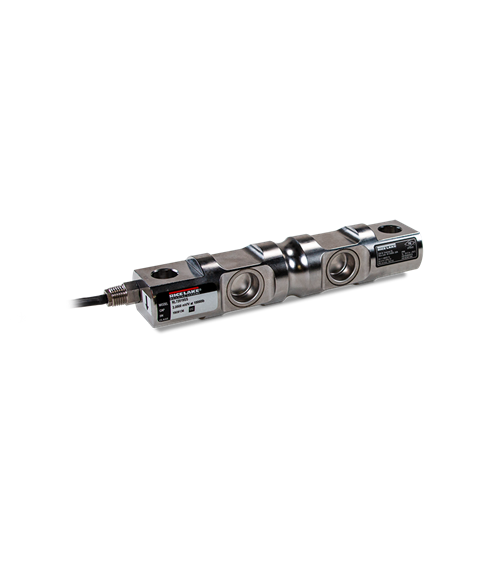

Rice Lake RL72019SS Stainless Steel, Double-Ended Beam Load Cell

$0.00

A direct replacement for the RL72010MH load cell. It is stainless steel and has a welded seal. Complete with 25 ft of cable and is available in capacities from 5,000 lb to 60,000 lb.

Download product PDF
Categories: , , ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
800 (± 30) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Nonlinearity:
0.03% full scale

Hysteresis:
0.5% full scale

Insulation Resistance:
5,000 megohm

 Cable Length:
25 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 21-064

Options

194021 Load Cell, DEB RL72019SS 5k 5000lb 25ft 3mv/v 700 Ohm WW SST WS FM IP68
194022 Load Cell, DEB RL72019SS 10k 10000lb 25ft 3mv/v 700 Ohm WW SST NTEP III 5M IIIL 10M WS FM IP68
194023 Load Cell, DEB RL72019SS 20k 20000lb 25ft 3mv/v 700 Ohm WW SST NTEP III 5M IIIL 10M WS FM IP68
194024 Load Cell, DEB RL72019SS 30k 30000lb 25ft 3mv/v 700 Ohm WW SST NTEP III 5M IIIL 10M WS FM IP68
194025 Load Cell, DEB RL72019SS 40k 40000lb 25ft 3mv/v 700 Ohm WW SST NTEP III 5M IIIL 10M WS FM IP68
194026 Load Cell, DEB RL72019SS 50k 50000lb 25ft 3mv/v 700 Ohm WW SST NTEP III 5M IIIL 10M WS FM IP68
194027 Load Cell, DEB RL72019SS 60k 60000lb 25ft 3mv/v 700 Ohm WW SST NTEP III 5M IIIL 10M WS FM IP68
