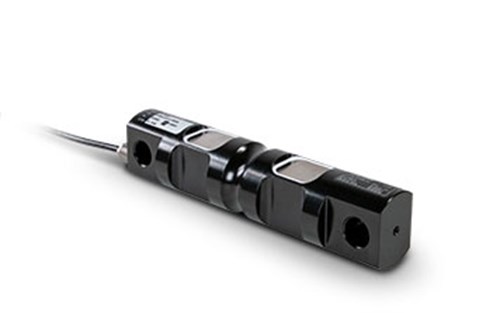

Rice Lake RL72020P Coated Alloy Steel, Double-Ended Beam Load Cell

$0.00

Download product PDF
Categories: ,

Features

A coated alloy steel, double-ended beam load cell ideal for fertilizer, tank and hopper applications. Capacities range from 5,000 lb to 250,000 lb and comes with 30 ft of load cell cable.

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
5 to 10 k: 703 (± 4) ohm
20 to 150 k: 700 (± 5) ohm
200 to 250 k: 700 (± 5) ohm

Input Resistance:
5 to 10 k: 700 (± 14) ohm
20 to 150 k: 770 (± 10) ohm
200 to 250 k: 700(± 14) ohm

Material/Finish:
Alloy steel, coated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

 Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
5,000 lb: 0.02 in
10,000 lb: 0.025 in
20,000 lb: 0.042 in
30,000 to 50,000 lb: 0.02 in
60,000 lb: 0.025 in
100,000 lb: 0.02 in

 Cable Length:
30 ft

Cable Diameter:
5,000 to 20,000 lb: 0.200 in
30,000 to 250,000 lb: 0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 21-064

Options

201769 Load Cell,DEB RL72020-5k 5000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC costing coating
201770 Load Cell,DEB RL72020-10K 10000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
201771 Load Cell,DEB RL72020-20K 20000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
201772 Load Cell,DEB RL72020-30K 30000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
201773 Load Cell,DEB RL72020-40K 40000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
201774 Load Cell,DEB RL72020-50K 50000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
201775 Load Cell,DEB RL72020-60K 60000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
201776 Load Cell,DEB RL72020- 100000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
201777 Load Cell,DEB RL72020- 150000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
201778 Load Cell,DEB RL72020- 200000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating
