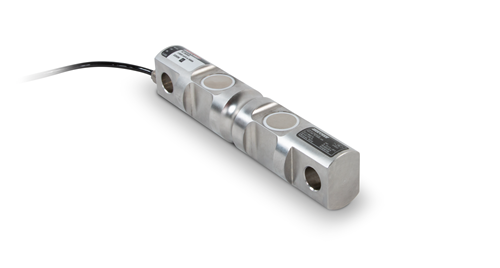

Rice Lake RL72020SS Stainless Steel, Double-Ended Beam Load Cell

$0.00

Download product PDF
Categories: ,

Features

A stainless steel, double-ended beam load cell with an environmental seal and Legal for Trade NTEP certification. Available in capacities of 5,000 lb to 150,000 lb and complete with 30 ft of cable.

Specifications

Full Scale Output:
3.0 mV/VOutput Resistance:
700 (± 5) ohm

Input Resistance:
700 (± 10) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
14 °F to 104 °F (-10 °C to 40 °C)

 Seal Type:
Environmentally sealed, IP67Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

 Cable Length:
30 ft polyurethane jacketCable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
NTEP 21-064
cFMus

Options

201781 Load Cell,DEB RL72020SS 10000lb 30ft 3mv/v 700 Ohm WW NTEP 111 5M IIIL 10M FM SST IP67
201782 Load Cell,DEB RL72020SS 20000lb 30ft 3mv/v 700 Ohm WW NTEP 111 5M IIIL 10M FM SST IP67
201783 Load Cell,DEB RL72020SS 30000lb 30ft 3mv/v 700 Ohm WW NTEP 111 5M IIIL 10M FM SST IP67
201784 Load Cell,DEB RL72020SS 40000lb 30ft 3mv/v 700 Ohm WW NTEP 111 5M IIIL 10M FM SST IP67
201785 Load Cell,DEB RL72020SS 50000lb 30ft 3mv/v 700 Ohm WW NTEP 111 5M IIIL 10M FM SST IP67
201786 Load Cell,DEB RL72020SS 60000lb 30ft 3mv/v 700 Ohm WW NTEP 111 5M IIIL 10M FM SST IP67
201787 Load Cell,DEB RL72020SS 100000lb 30ft 3mv/v 700 Ohm WW NTEP 111 5M IIIL 10M FM SST IP67
