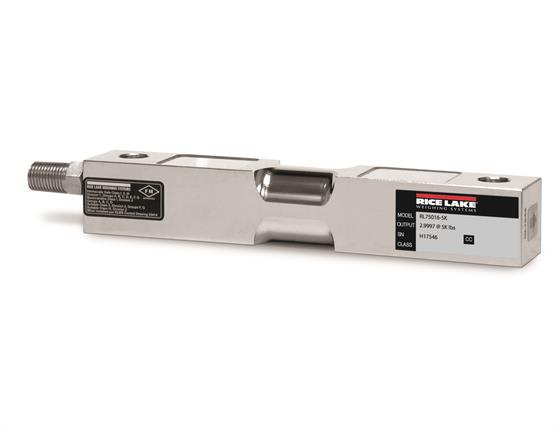

Rice Lake RL75016 Alloy Steel, Double-Ended Beam Load Cell

$0.00

The Rice Lake RL75016 Painted, Alloy Steel, Double-Ended Beam has a painted double-ended beam with center loading and is designed for tank and hopper applications.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (? 5) ohm

Input Resistance:
770 (? 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.03% Full scale

Deflection at Capacity:
1,000 lb-3,000 lb=0.01 in (0.3 mm)
5,000 lb=0.015 in (0.4 mm)
10,000-20,000 lb=0.022 in (0.6 mm)
25,000 lb=0.036 in (0.9 mm)
50,000 lb=0.052 in (1.3 mm)
75,000 lb=0.07 in (1.8 mm

Hysteresis:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
25 ft (7.6 m)

Cable Diameter:
1,000 lb-25,000 lb=0.200 polyurethane jacket
50,000 lb-75,000 lb=0.305 polyurethane jacket

Cable Color Code:
Red………………….+ Excitation
Black…………………? Excitation
Green ……………….+ Signal
White…………………? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus

Models

17300 Load Cell,DEB RL75016I-1K 1000lb 25ft 3mv/v 700 Ohm FM IP67 WW
17302 Load Cell,DEB RL75016I- 1.5K 1500lb 25ft 3mv/v 700 Ohm FM IP67 WW
17304 Load Cell,DEB RL75016I-2K 2000lb 25ft 3mv/v 700 Ohm FM IP67 WW
17306 Load Cell,DEB RL75016I- 2.5k 2500lb 25ft 3mv/vv 700 Ohm FM WW IP67
17308 Load Cell,DEB RL75016I-3K 3000lb 25ft 3mv/v 700 Ohm FM WW IP67
17309 Load Cell,DEB RL75016-5K 5000lb 25ft 3mv/v 700 Ohm FM WW IP67
17311 Load Cell,DEB RL75016I- 10K 10,000lb 25ft 3mv/v 700 Ohm FM WW IP67
17313 Load Cell,DEB RL75016-15K 15,000lb 25ft 3mv/vv 700 Ohm FM WW IP67
17315 Load Cell,DEB RL75016-20K 20,000lb 25ft 3mv/vv 700 Ohm FM WW IP67
17317 Load Cell,DEB RL75016-25K 25,000lb 25ft 3mv/vv 700 Ohm FM WW IP67
17319 Load Cell,DEB RL75016-50K 50,000lb 25ft 3mv/vv 700 Ohm FM WW IP67
25357 Load Cell,DEB RL75016-75K 75,000lb 25ft 3mv/v 700 Ohm FM WW IP67
