Home / Load Cells / Search By Type of Load Cell / Double-Ended Shear Beam / Rice Lake RL75016 Coated, Alloy Steel, Double-Ended Beam Load Cell

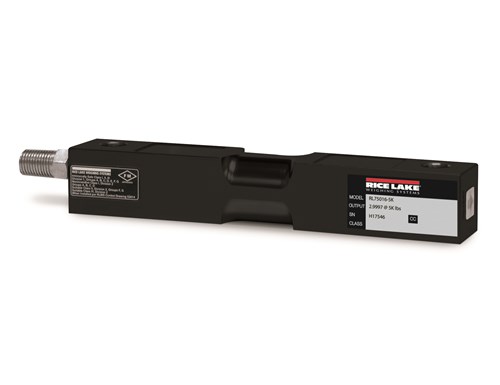

Rice Lake RL75016 Coated, Alloy Steel, Double-Ended Beam Load Cell $ 0.00
A version of the RL75016 load cell but with a proprietary coating for extra protection in dry chemical applications. Has a coated double-ended beam with center loading designed for tank and hopper applications. Capacities range from 1,000 lb to 75,000 lb. Complete with 25 ft of load cell cable.
Download product PDF
Specifications
Full Scale Output:
3.0 mV/V
Output Resistance:
700 (± 5) ohm
Input Resistance:
770 (± 10) ohm
Material/Finish:
Alloy steel, coated
Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type:
Environmentally sealed, IP67
Safe Overload:
150% full scale
Safe Sideload:
100% full scale
Rated Excitation:
5 to 10 VDC (15 V maximum)
Nonlinearity:
0.03% full scale
Hysteresis:
0.02% full scale
Insulation Resistance:
5,000 megohm
Cable Length:
25 ft
Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
Warranty:
Two-year limited
Approvals:
cFMus
Options
Part #
Description
187058
Load Cell,DEB RL75016 1000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated
187059
Load Cell,DEB RL75016 1500lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated
187060
Load Cell,DEB RL75016 2000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated
187061
Load Cell,DEB RL75016 2500lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated
187062
Load Cell,DEB RL75016 3000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated
187063
Load Cell,DEB RL75016 5000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated
187064
Load Cell,DEB RL75016 10000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated
187065
Load Cell,DEB RL75016 15000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating
187066
Load Cell,DEB RL75016 20000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating
187067
Load Cell,DEB RL75016 25000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating
187068
Load Cell,DEB RL75016 50000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating
187069
Load Cell,DEB RL75016 75000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating
