Features
The RL75016 painted double-ended beam with center loading is designed for tank and hopper applications. Capacities range from 1,000 to 75,000 pounds?(453.6?to 34,019.4 kilograms). Complete with 25 feet (7.6 meters) of load cell cable.
$0.00

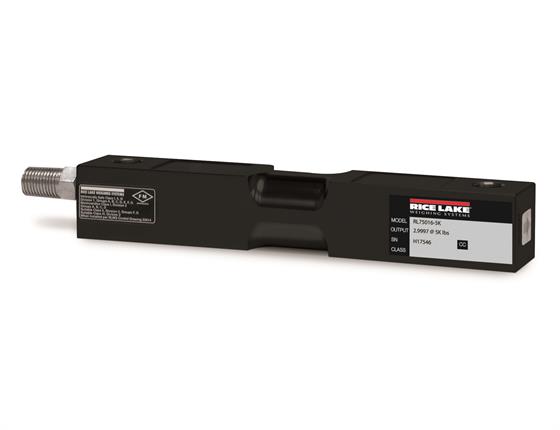

The Rice Lake RL75016 Painted, Alloy Steel, Double-Ended Beam has a painted double-ended beam with center loading and is designed for tank and hopper applications.
The RL75016 painted double-ended beam with center loading is designed for tank and hopper applications. Capacities range from 1,000 to 75,000 pounds?(453.6?to 34,019.4 kilograms). Complete with 25 feet (7.6 meters) of load cell cable.
Full Scale Output:
3.0 mV/V
Output Resistance:
700 (? 5) ohm
Input Resistance:
770 (? 10) ohm
Material/Finish:
High-alloy steel, nickel plated, painted
Temperature:
Operating range
0? F to 150? F/-18? C to 65? C
Seal Type:
Environmentally sealed, IP67
Safe Overload:
150% full scale
Safe Sideload:
100% full scale
Rated Excitation:
5-10 VDC (15 V maximum)
Nonlinearity:
0.03% full scale
Hysteresis:
0.02% full scale
Insulation Resistance:
5,000 megohms
Cable Length:
25 ft (7.6 m)
Cable Color Code:
Red + Excitation
Black ? Excitation
Green + Signal
White ? Signal
Warranty:
Two-year limited warranty
Approvals:
cFMusus
