Rice Lake RL75016SS Stainless Steel,Double-Ended Beam Load Cell

$0.00

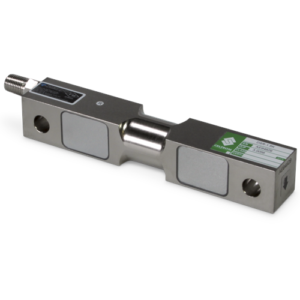

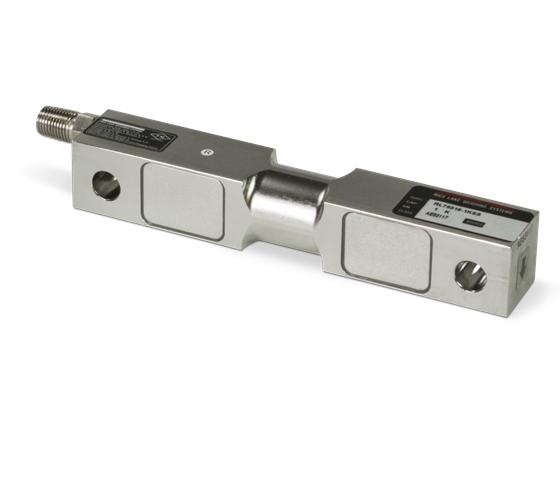

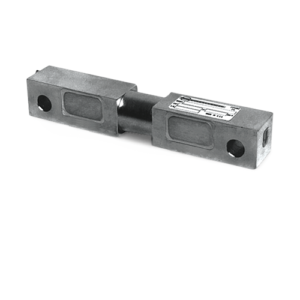

The Rice Lake RL75016SS double-ended beam, stainless steel load cell with center loading is designed for tank and hopper applications.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (? 5) ohm

Input Resistance:
770 (? 10) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range 0?F to 150?F/-18?C to 65?C

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.07% Full scale

Hysteresis:
0.02% Full scale

Cable Diameter:
1,000 lb-25,000 lb=0.200 polyurethane jacket
50,000 lb-75,000 lb=0.305 polyurethane jacket

Deflection at Capacity:
1,000 lb-3,000 lb=0.01 in (0.3 mm)
5,000 lb=0.015 in (0.4 mm)
10,000 lb-20,000 lb=0.022 in (0.6 mm)
25,000 lb=0.036 in (0.9 mm)
50,000 lb=0.052 in (1.3 mm)
75,000 lb=0.07 in (1.8 mm)

Insulation Resistance:
5,000 megohms

Cable Length:
25 ft (7.6 m)

Cable Color Code:
Red……………………..+ Excitation
Black……………………? Excitation
Green…………………..+ Signal
White…………………..? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus

Models



17301 Load Cell,DEB RL75016-1K SS 1000lb 25ft 3mv/v 700 Ohm FM IP67 WW SST
17303 Load Cell,DEB RL75016- 1.5K SS 1500lb 25ft 3mv/v 700 Ohm FM IP67 WW SST
17305 Load Cell,DEB RL75016-2K SS 2000lb 25ft 3mv/v 700 Ohm FM IP67 WW SST
17307 Load Cell,DEB RL75016- 2.5K SS 2500lb 25ft 3mv/v 700 Ohm FM WW IP67 SST
17310 Load Cell,DEB RL75016-5K SS 5000lb 25ft 3mv/v 700 Ohm FM WW IP67 SST
17312 Load Cell,DEB RL75016-10K SS 10,000lb 25ft 3mv/v 700 Ohm FM WW IP67 SST
17314 Load Cell,DEB RL75016-15K SS 15,000lb 25ft 3mv/v 700 Ohm FM WW IP67 SST
17316 Load Cell,DEB RL75016-20K SS 20,000lb 25ft 3mv/v 700 Ohm FM WW IP67 SST
17318 Load Cell,DEB RL75016-25K SS 25,000lb 25ft 3mv/v 700 Ohm FM WW IP67 SST
17320 Load Cell,DEB RL75016-50K SS 50,000lb 25ft 3mv/v 700 Ohm FM WW IP67 SST
25356 Load Cell,DEB RL75016-75k SS 75,000lb 25ft 3mv/v 700 Ohm FM WW IP67 SST
