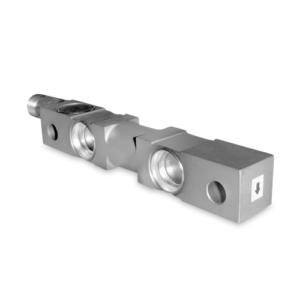

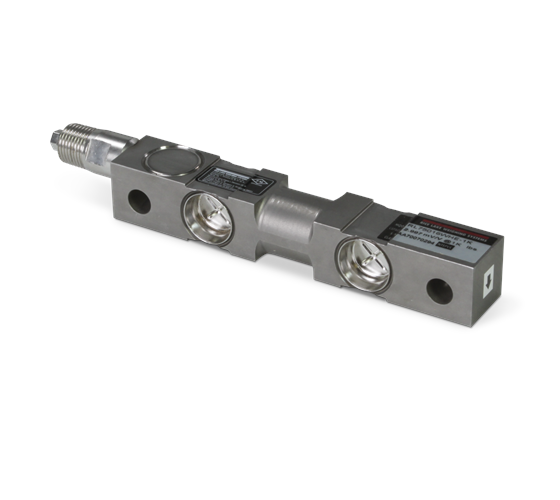

Rice Lake RL75016WHE Stainless Steel, Double-Ended Beam Load Cell
$0.00
The Rice Lake RL75016WHE Stainless Steel, Double-Ended Beam Load Cell has center loading, designed for tank and hopper applications.
Download product PDF
Specifications
Full Scale Output:
3.0 mV/V
Output Resistance:
699-707 ohm
Input Resistance:
686-714 ohm
Material/Finish:
Stainless steel
Temperature:
Operating range
0?F to 150?F/-18?C to 65?C
Safe Overload:
150% full scale
Safe Sideload:
100% full scale
Rated Excitation:
5-10 VDC (15 V maximum)
Total Error:
0.03% full scale
Insulation Resistance:
2,000 megohms
Seal Type:
Hermetically sealed, IP69K
Cable Length:
25ft (7.6m)
Cable Diameter:
0.200 polyurethane jacket
Cable Color Code:
Red………………….+ Excitation
Black…………………? Excitation
Green ……………….+ Signal
White …………………? Signal
Warranty:
Two-year limited warranty
Approvals:
cFMus
Water Proof
Models
| 67043 |
Load Cell,DEB RL75016WHE- 1K 1000lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
|
|
| 67044 |
Load Cell,DEB RL75016WHE- 1.5K 1500lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
|
|
| 67045 |
Load Cell,DEB RL75016WHE- 2K 2,000lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
|
|
| 67046 |
Load Cell,DEB RL75016WHE- 2.5K 2500lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
|
|
| 67047 |
Load Cell,DEB RL75016WHE- 5K 5000lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
|
|
| 67048 |
Load Cell,DEB RL75016WHE- 10K 10,000lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
|
|
|
Load Cell,DEB RL75016WHE- 15K 15,000lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
|
|
| 67050 |
Load Cell,DEB RL75016WHE- 20K 20,000lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
|
|
| 67051 |
Load Cell,DEB RL75016WHE- 25K 25,000lb 25FT 3MV/V 700 OHM SST HS FM IP66/68 |
