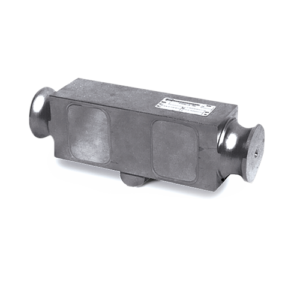

Rice Lake RL75040 Alloy Steel, Double-Ended Beam Load Cell

$0.00

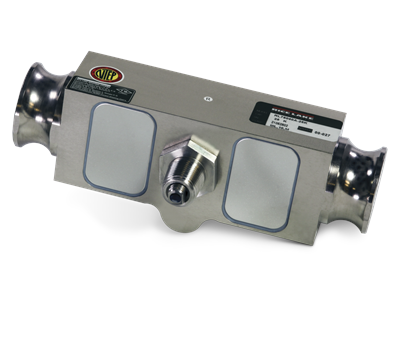

The Rice Lake RL75040 double-ended beam load cell, alloy steel is designed for center mounting and double link loading, compatible with Unilink/Translink suspension up to 75,000?pounds (34,019.4?kilograms).

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (? 5) ohm

Input Resistance:
770 (? 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.03% Full scale

Hysteresis:
0.02% Full scale

Insulation Resistance:
1,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
35 ft (10.6 m)
40 ft (12.2 m)
50 ft (5.2 m)

Cable Diameter:
0.200 polyurethane jacket 25,000 lb
0.305 polyurethane jacket 40,000 lb-75,000 lb

Cable Coloring Code:
Red………………….+ Excitation
Black…………………? Excitation
Green………………..+ Signal
White………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

21614 Load Cell,DEB RL75040-25K 25,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67
21615 Load Cell,DEB RL75040-40K 40,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67
21616 Load Cell,DEB RL75040-50K 50,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67
21617 Load Cell,DEB RL75040-60K 60,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 LE 11.5in
21618 Load Cell,DEB RL75040-75K 75,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67
21619 Load Cell,DEB RL75040- 100K 100,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67
21620 Load Cell,DEB RL75040- 125K 125,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67
