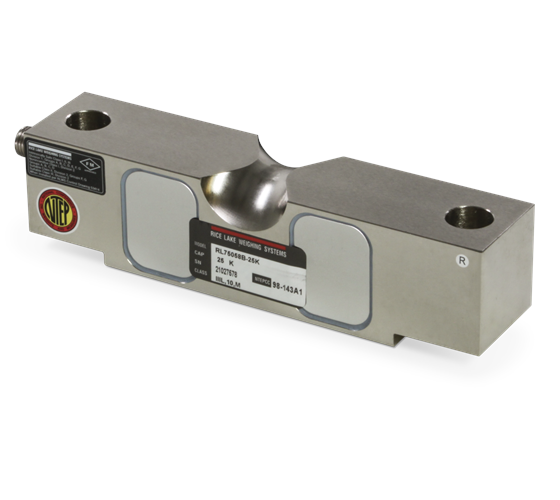

Rice Lake RL75058I Alloy Steel, Double-Ended Beam Load Cell

The Rice Lake RL75058I double-ended beam, alloy steel load cell is nickel plated and environmentally sealed with stainless steel side plates.

Unfortunately this product has been DISCONTINUED. For similar products click here.

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (? 5) ohms

Input Resistance:
770 (? 10) ohms

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
35ft (10.6m)

Cable Diameter:
0.200 polyurethane jacket 10,000lb-25,000lb
0.305 polyurethane jacket 40,000lb-125,000lb

Cable Coloring Code:
Red………………….+ Excitation
Black…………………..? Excitation
Green …………………….+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

34314 Load Cell,DEB RL75058I- 20K 20,000lb 35ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
34315 Load Cell,DEB RL75058I- 25K 25,000LB 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
34316 Load Cell,DEB RL75058I- 40K 40,000lb 35ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
34317 Load Cell,DEB RL75058I- 50K 50,000lb LE 35ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
34318 Load Cell,DEB RL75058I- 60K 60,000lb 35ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
34319 Load Cell,DEB RL75058I- 75K 75,000lb 35ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
34320 Load Cell,DEB RL75058B- 100k 100,000lb 35ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
34321 Load Cell,DEB RL75058I- 125k 125,000lb 35ft 3mV/V 700 OHM WW NTEP IIIL 10M FM IP67
