Rice Lake RL75058-LP Alloy Steel Double-Ended Beam Load Cell $ 0.00

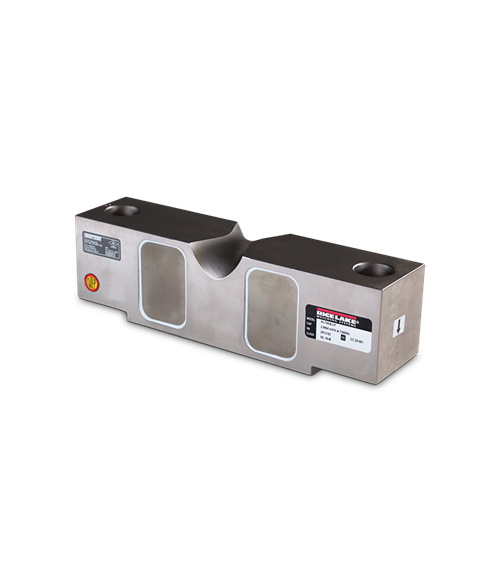

Rice Lake RL75058-LP Alloy Steel Double-Ended Beam Load Cell
Download product PDF
Specifications
Full Scale Output:
3.0 mV/VOutput Resistance:
700 (± 5) ohmInput Resistance:
770 (± 10) ohmMaterial/Finish:
High-alloy steel, nickel plated
Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type:
Environmentally sealed, IP67Safe Overload:
150% full scaleSafe Sideload:
100% full scaleRated Excitation:
5 to 10 VDC (15 V maximum)
Combined Error:
0.02% full scale
Insulation Resistance:
5,000 megohm
Cable Length:
35 ft
60 ft
100 ftCable Diameter:
10,000 to 25,000 lb: 0.200 in
40,000 to 125,000 lb: 0.305 in
Polyurethane jacketCable Coloring Code:
Red +Excitation
Black –Excitation
Green +Signal
White –SignalWarranty:
Two-year limited
Approvals:
cFMus
NTEP 20-081
Options
197770
Load Cell,DEB RL75058-LP 20k 20,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67
197771
Load Cell,DEB RL75058-LP 25k 25,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67
197772
Load Cell,DEB RL75058-LP 40k 40,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67
197773
Load Cell,DEB RL75058-LP 50k 50,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67
197774
Load Cell,DEB RL75058-LP 60k 60,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67
197775
Load Cell,DEB RL75058-LP 75k 75,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67
197776
Load Cell,DEB RL75058-LP 100k 100,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67
197777
Load Cell,DEB RL75058-LP 125k 125,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67
