Rice Lake RL75058I for Coil Scale Load Cell

$0.00

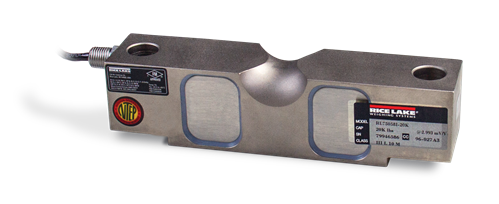

Nickel plated and environmentally sealed with stainless steel side plates. Used in the Rice Lake Weighing Systems coil scale. 20,000 lb to 75,000 lb, complete with 35 ft of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
699 to 707 ohm

Input Resistance:
686 to 714 ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F/-10 °C to 40 °C
Operating range
0 °F to 150 °F/-18 °C to 65 °C

Seal Type:
Environmentally sealed, IP67

 Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
35 ft

 Cable Diameter:
20,000 lb: 0.200 in
40,000 to 75,000 lb: 0.305 in
Polyurethane jacket

Cable Coloring Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 98-143

Options

121439 Load Cell,DEB RL75058-20K 20,000lb 35ft 3 mv/v 700 Ohm WW NTEP III 5M FM IP67
121440 Load Cell,DEB RL75058-25K 25,000lb 35ft 3 mv/v 700 Ohm WW NTEP III 5M FM IP67
121441 Load Cell,DEB RL75058-40K 40,000lb 35ft 3 mv/v 700 Ohm WW NTEP III 5M FM IP67
121442 Load Cell,DEB RL75058-50K 50,000lb 35ft 3 mv/v 700 Ohm WW NTEP III 5M FM IP67
121443 Load Cell,DEB RL75058-60K 60,000lb 35ft 3 mv/v 700 Ohm WW NTEP III 5M FM IP67
121444 Load Cell,DEB RL75058-75K 75,000lb 35ft 3 mv/v 700 Ohm WW NTEP III 5M FM IP67
