DISCONTINUED

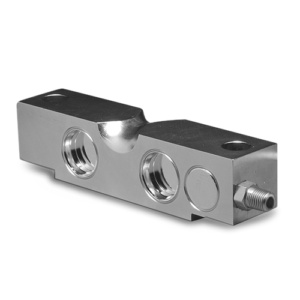

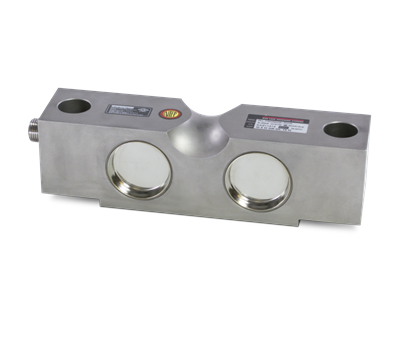

Rice Lake RL75060S Stainless Steel, Double-Ended Beam Load Cell

With welded-seal and NTEP Certification to 10,000 divisions, the Rice Lake RL75060S load cell provides the ultimate in durability and accuracy in high-capacity process measurement and control.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
699-707 ohm

Input Resistance:
686-714 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)
Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohms

Seal Type:
Welded seal, IP67

Cable Length:
35ft (10.6m)

Cable Diameter:
0.200 polyurethane jacket 20,000lb-25,000lb
0.305 polyurethane jacket 35,000lb-100,000lb

Cable Coloring:
Red………………….+ Excitation
Black………………….? Excitation
Green………………..+ Signal
White…………………? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP
Water Proof

Models

53481 Load Cell,DEB RL75060S- 20k 20,000lb 35ft 3mv/v 700 OHM WW NTEP III L 10m FM SST WS IP67
Add to Quote
50559 Load Cell,DEB RL75060S- 25K 25,000lb 35ft 3mV/V 700 OHM WW NTEP III L 10M FM SST WS IP67
Add to Quote
50560 Load Cell,DEB RL75060S- 35K 35,000lb 35ft 3mV/V 700 OHM WW NTEP III L 10M FM SST WS IP67
Add to Quote
50561 Load Cell,DEB RL75060S- 50K 50,000lb 35ft 3mV/V 700 OHM WW NTEP III L 10M FM SST WS IP67
Add to Quote
50562 Load Cell,DEB RL75060S- 60K 60,000lb 35ft 3mV/V 700 OHM WW NTEP III L 10M FM SST WS IP67
Add to Quote
50563 Load Cell,DEB RL75060S- 75K 75,000lb 35ft 3mV/V 700 OHM WW NTEP III L 10M FM SST WS IP67
Add to Quote
50564 Load Cell,DEB RL75060S- 100K 100,000lb 35ft 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
