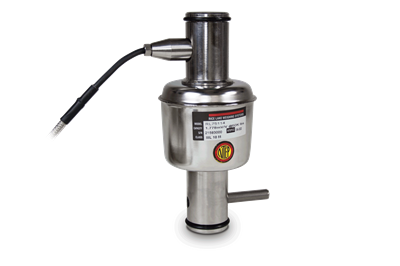

Rice Lake RL75114-50K Stainless Steel, Rocker Column Load Cell

$0.00

The Rice Lake RL75114 is a stainless steel, hermetically sealed, rocker column load cell designed to interchange with Fairbanks part number 64166.

Download product PDF

Specifications

?Full Scale?Output:
1.8 mV/v nominal

Output Resistance:
1,000 (? 10) ohm

Input Resistance:
1,000 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated Range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC

Combined Error:
0.025% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
1,000 megohms

Seal Type:
Welded Seal, IP67

Cable Length:
30 ft (9 m)

Cable Diameter:
0.200 overbraid cable

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White…………………..+ Signal
Red…………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

88074 Load Cell,CSR RL75114-50K 50,000lb 30FT 1.8 mv/v 1000 Ohm EW SST HS NTEP IIIL 10M overbraid cable.
