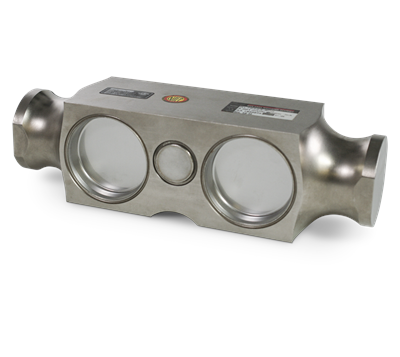

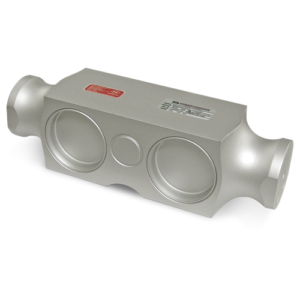

Rice Lake RL75223 Alloy Steel, Double-Ended Beam Load Cell

$0.00

The Rice Lake RL75223 double-ended beam, alloy steel load cell is a very high performance end-loaded, center-supported shear beam designed for low-profile truck and track scales in harsh environments.

Download product PDF

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
699-707 ohm

Input Resistance:
686-714 ohm

Material/Finish:
High-alloy steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Non-repeatability:
0.01% Full scale

Combined Error:
0.03% Full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
50,000lb=0.018in (0.5mm)
65,000lb=0.022in (0.6mm)
100,000lb=0.034in (0.9mm)

Seal Type:
Welded seal strain gauge, IP67

Cable Length:
40 ft (12.2 m)
PN 107583 60 ft (18.2 m)

Cable Diameter:
0.305 polyurethane jacket

Cable Color Code:
Red………………….+ Excitation
Black…………………? Excitation
Green………………..+ Signal
White………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

21611 Load Cell,DEB RL75223-50K 50,000lb 40ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 WS
21612 Load Cell,DEB RL75223-65K 65,000lb 40ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 WS
21613 Load Cell,DEB RL75223- 100K 100,000lb 40ft 3mv/v 700 Ohm NTEP IIIL 10M WW IP67 WS
