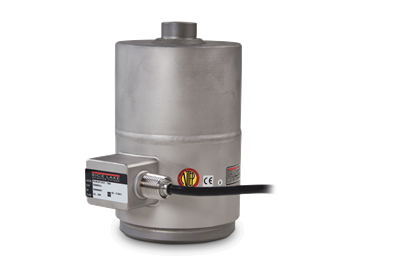

Rice Lake RL8C2P1SS Stainless Steel, Compression Canister Load Cell

The Rice Lake RL8C2P1SS Stainless Steel, Compression Canister Load Cell has a single column design with low deflection for trouble-free operation.

Unfortunately this product has been DISCONTINUED. For similar products click here.

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 +/- 3.5 ohm

Input Resistance:
350?+/- 3.5 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C

Safe Overload:
150% full scale

Rated Excitation:
10 VDC (15 V maximum)

Non-repeatability:
0.01% Full scale

Combined Error:
0.03% Full scale

Insulation Resistance:
>1,000 megohms

Deflection at Capacity:
50,000 lb=.004 in/102 mm,
100,000 lb=.006 in/.152 mm,
200,000 lb=.009 in/.228 mm

Seal Type:
Hermetically sealed, IP68

Cable Length:
35 ft (10.7 m)

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White…………………..+ Signal
Red…………………….? Signal
Orange………………..Shield

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP

Models

34855 Load Cell,CSR RL8C2P1SS- 50k 50,000lb 35ft 2mV/V 350 OHM EW NTEP IIIL 10M SST HS IP68
34856 Load Cell,CSR RL8C2P1SS- 100k 100,000lb 35ft 2mV/V 350 OHM EW NTEP IIIL 10M SST HS IP68
34857 Load Cell,CSR RL8C2P1SS- 200k 200,000lb 35ft 2mV/V 350 OHM EW NTEP IIIL 10M SST HS IP68
