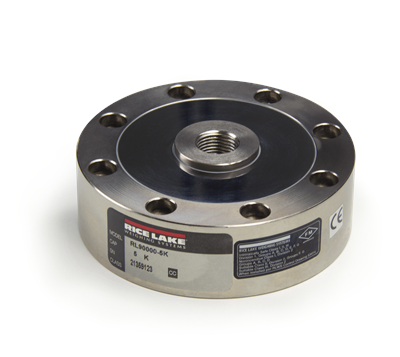

Rice Lake RL90000 Alloy Steel, Compression Disk Load Cell

$0.00

Rice Lake RL90000 Alloy Steel, Compression Disk Load Cell is an environmentally sealed, low-profile compression disk load cell providing excellent performance in applications where height is critical.

Download product PDF

Specifications

Full Scale Output:
4.0 mV/V

Output Resistance:
350 (? 3) ohm?(5,000 lb-50,000 lb)
700 (? 5) ohm?(100,000 lb)

Input Resistance:
385 (? 5) ohm?(5,000 lb-50,000 lb)
770 (? 70) ohm?(100,000 lb)

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
15 VDC (15 V maximum)

Nonlinearity:
0.05% Full scale

Hysteresis:
0.02% Full scale

Insulation Resistance:
2,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
50 ft (15.2 m)

Cable Diameter:
0.200 polyurethane jacket (5,000 lb-25,000 lb)
0.305 polyurethane jacket (50,000 lb-100,000 lb)

Cable Color Code:
Red………………….+ Excitation
Black………………..? Excitation
Green……………….+ Signal
White………………..? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus

Options

33616 Cup,Ball 1-5/16DIAx1-1/8

Models

33061 Load Cell,CDK RL90000-5K 5,000lb 15m 4mV/V 350 OHM WW Alloy Steel C/T FM IP67
33062 Load Cell,CDK RL90000-10k 10,000lb 15m 4mV/V 350 OHM WW Alloy Steel C/T FM IP67
33063 Load Cell,CDK RL90000-25K 25,000lb 15m 4mV/V 350 OHM WW Alloy Steel C FM IP67
33064 Load Cell,CDK RL90000-50K 50,000lb 15m 4mV/V 350 OHM WW Alloy Steel C FM IP67
33065 Load Cell,CDK RL90000- 100k 100,000lb 15m 4mV/V 700 OHM Alloy Steel WW C FM IP67
