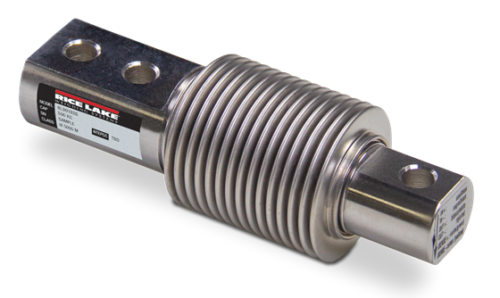

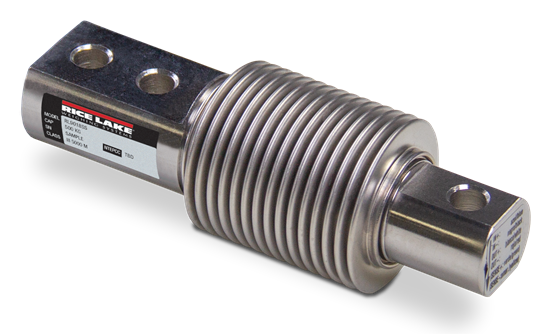

Rice Lake RL9018SS Stainless Steel, Single-Ended Beam

$0.00

The Rice Lake RL9018SS is a stainless steel, single-ended beam load cell that is hermetically sealed with an IP68 rating. It has NTEP approval for capacities from 5 kg to 500 kg. Each load cell comes with 3 m of cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V ?10% current matched

Output Resistance:
350 (? 3) ohm

Input Resistance:
400 (? 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range: 14? F to 104? F/-10? C to 40? C
Operating range: 0? F to 150? F/-30? C to 70? C



Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohms



Cable Length:
3 m (9.8 ft)

Cable Material:
PVC

Cable Color Code:
Green + Excitation
Black ? Excitation
Red + Signal
White ? Signal

Green +Sense

Yellow -Sense
Warranty:
Two-year limited warranty

Approvals:
cFMusus
NTEP

OIML

Models



188692 Load Cell,SPT RL9018SS 10kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
188691 Load Cell,SPT RL9018SS 5kg 10ft 2mv/v 350 Ohm SST FM IP68/IP69K
188693 Load Cell,SPT RL9018SS 20kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
188694 Load Cell,SPT RL9018SS 30kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
188702 Load Cell,SPT RL9018SS 50kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69k
188695 Load Cell,SPT RL9018SS 75kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
188696 Load Cell,SPT RL9018SS 100kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
188697 Load Cell,SPT RL9018SS 200kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
188698 Load Cell,SPT RL9018SS 250kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
188699 Load Cell,SPT RL9018SS 300kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
188700 Load Cell,SPT RL9018SS 500kg 10ft 2mv/v 350 Ohm NTEP III 4S/5M C3 SST FM IP68/IP69K
