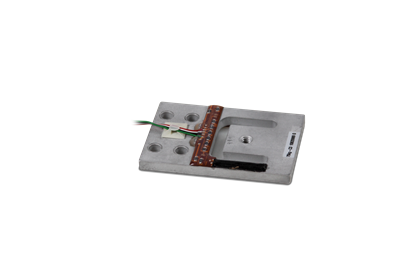

Rice Lake RLBLP Aluminum, Planar Beam Load Cell

The Rice Lake RLBLP planar beam load cell has a very low profile aluminum sensor that can be used in bench scales or low profile floor scales.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
1 mV/V

Output Resistance:
1,000 (? 10) ohm

Input Resistance:
1,180 (? 50) ohm

Material/Finish:
Aluminum

Temperature:
Operating range:
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Rated Excitation:
5-15 VDC

Combined Error:
0.05% full scale

Seal Type:
Environmentally sealed, IP65

Insulation Resistance:
5,000 megohms

Cable Length:
15 kg = 1.0m
37.5kg, 75kg, 150kg = 1.5m

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Red …………………….+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus

Models



100272 Load Cell,SEB RLBLP-15kg 15kg 1m 1mv/v 1000 Ohm AL Planar beam 1/4-20 threaded load hole
104645 Load Cell,SEB RLBLP-37.5 kg 1.5m 1000 Ohm 1mV/V Aluminum Planar beam 1/4-20 threaded load hole
100273 Load Cell,SEB RLBLP-75kg 75kg 1.5m 1mv/v 1000 Ohm AL Planar beam 1/4-20 threaded load hole
100274 Load Cell,SEB RLBLP-150kg 150kg 1.5m 1mv/v 1000 Ohm AL Planar beam 5/16-18 threaded load hole
