Rice Lake RLCSP1 Stainless Steel, Compression Canister Load Cell

$0.00

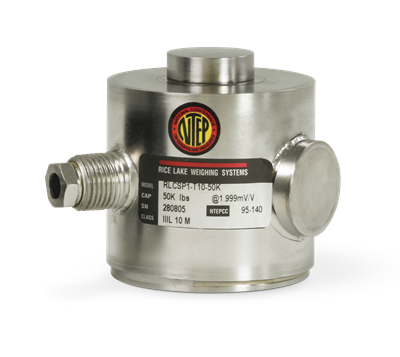

The Rice Lake RLCSP1 Stainless Steel, Compression Canister Load Cell is built for reliability, durability and extreme precision in vehicle and process applications.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
475.2-484.8 ohm

Input Resistance:
445.5-454.5 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
1,000 megohms

Deflection at Capacity:
25,000 lb-50,000 lb=0.003 in (0.076 mm)
100,000 lb-200,000 lb=(0.006 in (0.152 mm)

Seal Type:
Welded seal, IP67

Cable Length:
35 ft (10.7 m)

Cable Diameter:
0.305 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White…………………..+ Signal
Red……………………? Signal
Orange…………………Shield

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Models

32702 Load Cell,CSR RLCSP1-25k- T10 25,000lb 35ft 2mV/V 480 OHM EW NTEP IIIL 10M SST WS IP67
32701 Load Cell,CSR RLCSP1-50K- T10 50,000lb 35ft 2mV/V 480 OHM EW NTEP IIIL 10M SST WS IP67
32700
32699 Load Cell,CSR RLCSP1-200K -T10 200,000lb 35ft 2mV/V 480 OHM EW NTEP IIIL 10M SST WS IP67
