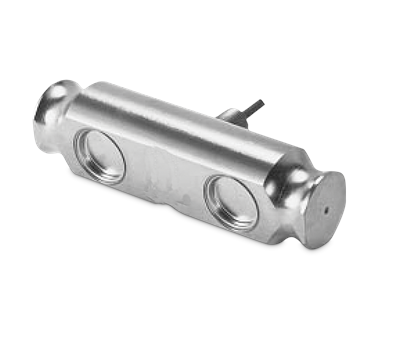

Rice Lake RLDB50000S Stainless Steel, Double-Ended Beam Load Cell
$0.00
The Rice Lake RLDD50000S is a double-ended beam, stainless steel, welded load cell designed as an interchangeable load cell for the Cardinal DB50000S.
Download product PDF
Features
Interchangeable Products:
Cardinal DB50000S
Specifications
Full Scale Output:
2 ? 0.1% mV/V
Output Resistance:
699-707?ohm
Input Resistance:
686-714 ohm
Material/Finish:
Stainless steel
Temperature:
Compensated Range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C
Safe Overload:
150% full Scale
Safe Sideload:
100% full Scale
Rated Excitation:
5-10 VDC (15 V DC maximum)
Non-repeatability:
0.01% full Scale
Combined Error:
0.03% full Scale
Insulation Resistance:
5000 megohms
Deflection at Capacity:
50,000 lb=0.01 in (0.38 mm)
Seal Type:
Welded seal, IP67
Cable Length:
35 ft (10.6 m)
Cable Diameter:
0.305 polyurethane jacket
Cable Color Code:
Red………………….+ Excitation
Black…………………? Excitation
Green………………..+ Signal
White………………….? Signal
Warranty:
Two-year limited warranty
Approvals:
NTEP
cFMus
Models
| 91765 |
Load Cell,DEB RLDB50000S- 50k 50,000lb 35ft 2 mv/v 700 Ohm SST NTEP IIIL 10 M IP67 FM |
