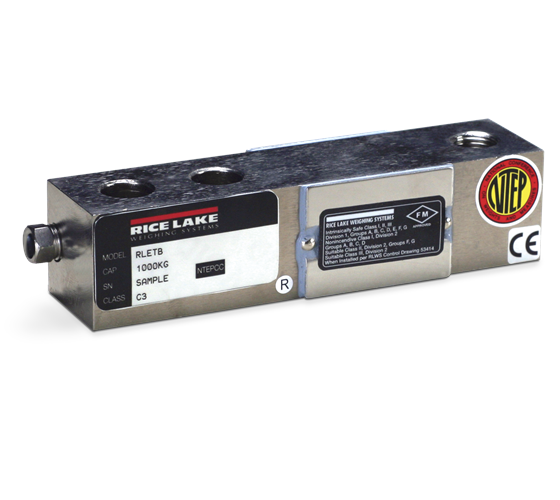

Rice Lake RLETB Alloy Steel, Single-Ended Beam Load Cell

Unfortunately this product has been DISCONTINUED.

For similar products click here.



Unfortunately this product has been DISCONTINUED. For similar products click here.

Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
349-355 ohm

Input Resistance:
343-357 ohm

Material/Finish:
Alloy steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.03% Full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
6 m (9.7 ft)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red………………….+ Excitation
Black…………………? Excitation
Green ……………….+ Signal
White …………………? Signal

Warranty:
Two-year limited warranty

Approvals:
FM
OIML

Models

31248 Load Cell,SEB RLETB-C3- 1t 1,000kg 6m 3mV/V 350 OHM WW OIML-C3 IP67
31247 Load Cell,SEB RLETB-C3- 2t 2,000kg 6m 3mV/V 350 OHM WW OIML-C3 IP67
31246 Load Cell,SEB RLETB-C3- 5t 5,000kg 6m 3mV/V 350 OHM WW OIML-C3 IP67
