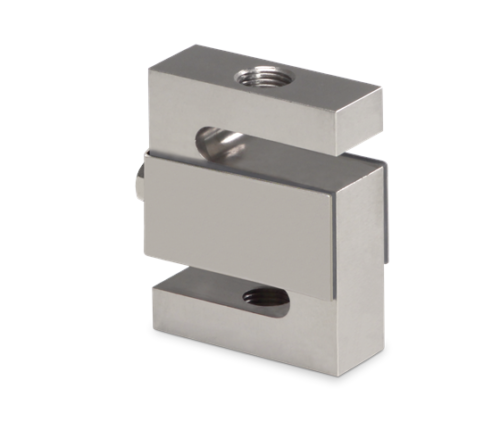

Rice Lake RLETS Alloy Steel, S-Beam Load Cell

$0.00

The alloy steel, Rice Lake RLETS S-beam load cell is ideally suited for scale conversions and general-purpose weighing.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
3.0 mV/V ?0.25%

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Alloy steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% Full scale

Rated Excitation:
5-10 VAC/DC (15V maximum)

Combined Error:
0.02% Full scale

Insulation Resistance:
5,000 megohms

Cable Length:
6m (19.7ft)

Cable Diameter:
0.200 polyurethane jacket

Cable Color Code:
Red………………….+ Excitation
Black…………………..? Excitation
Green …………………….+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMusus
OIML

Models

31254 Load Cell,SBM RLETS-C3- 250kg 250kg 6m 3mV/V 350 OHM WW OIML-C3 IP67
31255 Load Cell,SBM RLETS-C3- 500kg 500kg 6m 3mV/V 350 OHM WW OIML-C3 IP67
31256 Load Cell,SBM RLETS-C3- 1t 1,000kg 6m 3mV/V 350 OHM WW OIML-C3 IP67
31257 Load Cell,SBM RLETS-C3- 2.5t 2,500kg 6m 3mV/V 350 OHM WW OIML-C3 IP67
