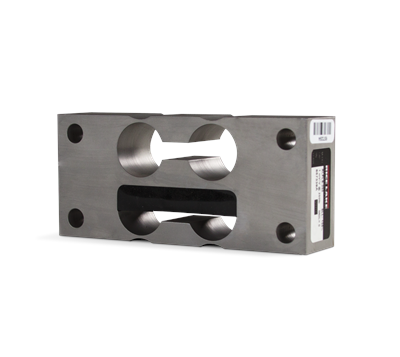

Rice Lake RLFLS Stainless Steel, Potted Single Point Load Cell
Interchangeable with the Avery Weigh-Tronix FLS, Rice Lake?s single-point RLFLS load cell is a solid choice for many bench scale applications.
Unfortunately this product has been
DISCONTINUED.
For similar products click
here.
Specifications
Full Scale Output:
1.0 (? 10%) mV/V
Output Resistance:
350 (? 3) ohm
Input Resistance:
385 (? 10) ohm
Material/Finish:
Stainless steel
Temperature:
Operating range:
0? F to 150? F/-18? C to 65? C
Safe Overload:
150% full scale
Rated Excitation:
5-15 VDC
Hysteresis:
0.02% R.O.
Linearity:
0.02% R.O.
Seal Type:
Environmentally sealed, IP67
Insulation Resistance:
5,000 megohms
Cable Length:
10 ft (3.1 m)
Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Red …………………….+ Signal
White ………………….? Signal
Warranty:
Two-year limited warranty
Models
| 125612 |
Load Cell,SPT RLFLS-50 50lb 10ft 1mv/v 350 Ohm SST IP67 |
|
|
| 125613 |
Load Cell,SPT RLFLS-75 75lb 10ft 1mv/v 350 Ohm SST IP67 |
