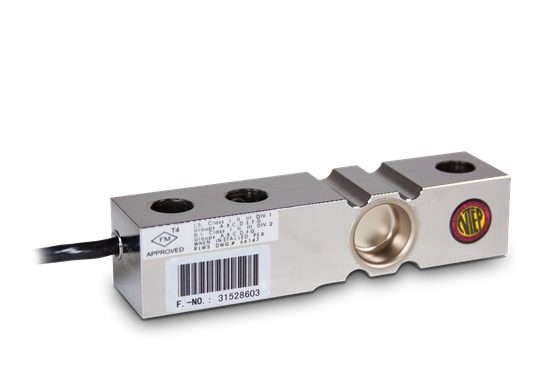

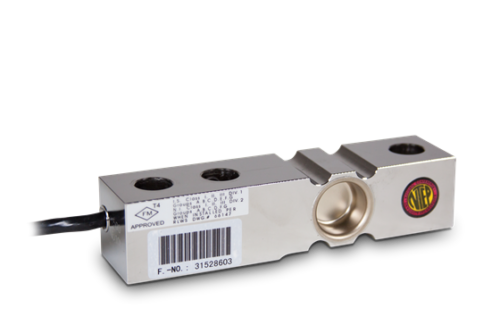

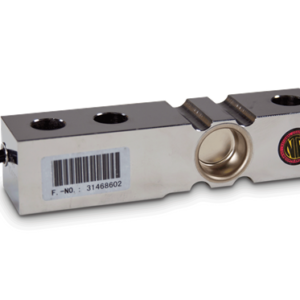

Rice Lake RLH35 Stainless Steel, Single-Ended Beam Load Cell

Full Scale Output:
3.0 mV/V

Output Resistance:
350 ohm, nominal

Input Resistance:
385 ohm, nominal

Material/Finish:
Stainless Steel

Temperature:
Compensated range:
14? F to 104? F/-10? C to 40? C
Operating range:
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Nonlinearity:
0.02% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Welded-seal, IP67

Cable Length:
20 ft (6.1m)

Cable Diameter:
0.190 polyurethane jacket

Deflection at Capacity:
500 lb to 5,000 lb=0.02 in (0.508 mm)

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White ………………….+ Signal
Red …………………….? Signal
Yellow ………………….Shield

Warranty:
Two-year limited warranty

Approvals:
FM Approved
NTEP
