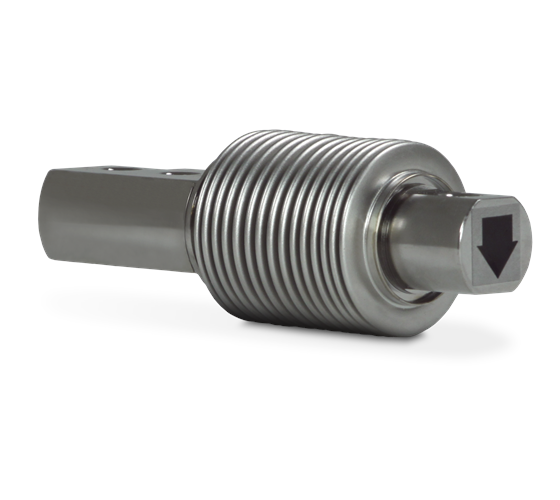

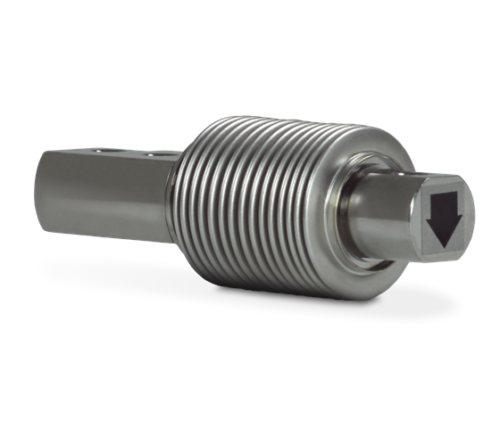

Rice Lake RLHBB Stainless Steel, Single-Ended Beam Load Cell

Stainless steel construction, hermetic sealing and polyurethane shielded cable enable the RLHBB to function in harsh environments while maintaining its operating specifications. Suitable for low-profile platforms, weighing and packing machines, electromechanical conversions and general-purpose weighing applications. OIML C3-certified capacities range from 5 kg to 500 kg. Complete with 3 m (9.8 ft) of load cell cable.

Unfortunately this product has been DISCONTINUED. For similar products click here.

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
355 (? 5) ohm

Input Resistance:
380 (? 10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15V maximum)

Total Error:
0.02% Full scale

Insulation Resistance:
2,000 megohms

Deflection at Capacity:
5 kg-500 kg=0.4 mm (0.015 in)

Seal Type:
Hermetically sealed, IP68

Cable Color Code:
Blue………………….+ Excitation
Black…………………? Excitation
White ………………..+ Signal
Red ………………….? Signal
Green ………………..+ Sense
Grey ………………….? Sense

Cable Length:
3 m (10 ft)

Cable Diameter:
0.220 polyurethane jacket

Warranty:
Two-year limited warranty

Approvals:
NTEP
OIML
cFMus
us

Models

41113 Load Cell,CLB RLHBB-5KG 3M 2mV/V 350 OHM NTEP III 5 M SST HS IP68 Class I FM
41114 Load Cell,CLB RLHBB-10KG 3M 2mV/V 350 OHM NTEP III 5 M SST HS IP68 Class I FM
41115 Load Cell,CLB RLHBB-20kg 3M 2mV/V 350 OHM NTEP III 5 M SST HS IP68 Class I FM
41116 Load Cell,CLB RLHBB-50kg 3M 2mV/V 350 OHM NTEP III 5 M SST HS IP68 Class I FM
41117 Load Cell,CLB RLHBB-100KG 3M 2mV/V 350 OHM NTEP III 5 M SST HS IP68 Class I FM
41118 Load Cell,CLB RLHBB-200KG 3M 2mV/V 350 OHM NTEP III 5 M SST HS IP68 Class I FM
41119 Load Cell,CLB RLHBB-250kg 3M 2mV/V 350 OHM NTEP III 5 M SST HS IP68 Class I FM
41120 Load Cell,CLB RLHBB-500kg 3M 2mV/V 350 OHM NTEP III 5 M SST HS IP68 Class I FM
