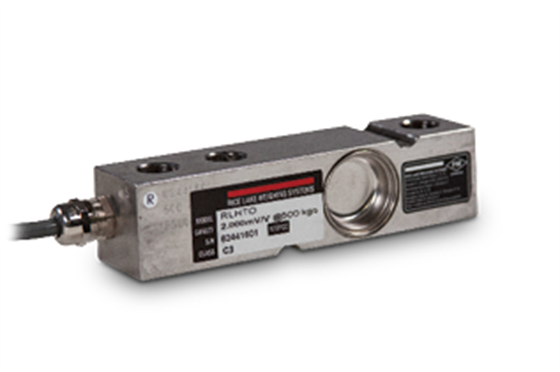

Rice Lake RLHTO Stainless Steel, Single-Ended Beam Load Cell

$0.00

The Rice Lake RLHTO stainless steel, 3000 division, OIML-approved, single-ended beam load cell is ideally suited for low-profile platforms, pallet truck weighers, tanks and silos.

Download product PDF

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (? 3) ohm

Input Resistance:
380 (? 10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14?F to 104?F/-10?C to 40?C
Operating range
0?F to 150?F/-18?C to 65?C

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.02% Applied Load

Insulation Resistance:
2,000 megohms

Deflection at Capacity:
500 kg-5,000 kg = 0.4 mm (0.015 in)

Seal Type:
Hermetically sealed, IP66/68

Cable Length:
5 m (16.4 ft)

Cable Diameter:
0.220 polyurethane jacket

Cable Color Code:
Blue…………………..+ Excitation
Black…………………..? Excitation
Green …………………+ Sense
Grey …………………..? Sense
White ………………….+ Signal
Red ……………………? Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
OIML
Waterproof Guaranteed

Models

31253 Load Cell,SEB RLHTO-C3- 500kg 500kg 5m 2mV/V 350 OHM OIML-C3 SST HS IP66/68
31250 Load Cell,SEB RLHTO-C3- 1t 1,000kg 5m 2mV/V 350 OHM OIML-C3 SST HS IP66/68
31251 Load Cell,SEB RLHTO-C3- 2t 2,000kg 5m 2mV/V 350 OHM OIML-C3 SST HS IP66/68
31252 Load Cell,SEB RLHTO-C3- 5t 5,000kg 5m 2mV/V 350 OHM OIML-C3 SST HS IP66/68
