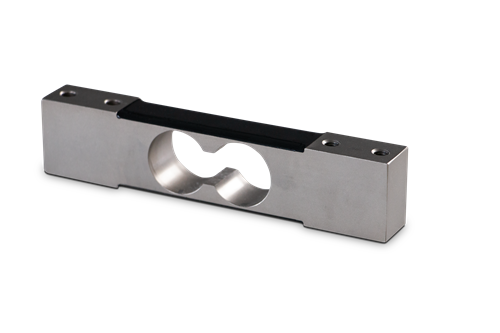

Rice Lake RLPC3SS Stainless Steel, Single Point Load Cell

$0.00

Stainless steel, environmentally sealed single-point ideally suited for bench scales. NTEP certified and OIML approved with capacities from 7 kg to 150 kg. 10 ft of cable standard.

Download product PDF
Categories: , , ,

Specifications

Full Scale Output:
2 mV/V

Output Resistance:
350 (± 10) ohm

Input Resistance:
385 (± 15) ohm

Material Finish:
Stainless steel

Temperature Compensation:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
5,000 megohm

Max Platform Size:
7 kg to 30 kg: 350 × 350 mm
60 kg to 150 kg: 450 × 450 mm

Combined Error:
0.02% full scale

 Cable Length:
10 ft

Cable Diameter:
0.140 in polyurethane jacket

Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow Shield

Warranty:
One-year limited

Approvals:
NTEP 21-017
OIML R60/2017-A-NL1-21.17

Options

205274 Load Cell, RLPC3SS 7kg 7kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S
205275 Load Cell, RLPC3SS 10kg 10kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S
205276 Load Cell, RLPC3SS 30kg 30kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S
205277 Load Cell, RLPC3SS 60kg 60kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S
205278 Load Cell, RLPC3SS 100kg 100kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S
205279 Load Cell, RLPC3SS 150kg 150kg 10ft 2mv/v 350 Ohm SST IP67 NTEP III 5S
