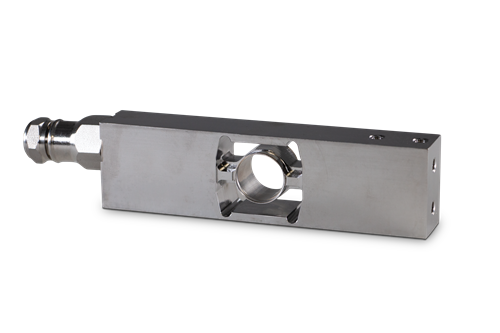

Rice Lake RLPC4SS-HE Stainless Steel, Single Point Load Cell

$0.00

Stainless steel hermetically sealed single-point designed for bench scales used in washdown applications. Available in capacities from 10 kg to 100 kg. NTEP Certified and OIML approved.

Download product PDF
Categories: , , ,

Specifications

Full Scale Output:
2 mV/V

Output Resistance:
960 (± 50) ohm

Input Resistance:
1100 (± 50) ohm

Material Finish:
Stainless steel

Temperature Compensation:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
> 5,000 megohm

Max Platform Size:
500 × 400 mm

Combined Error:
0.02% full scale

 Cable Length:
10 ft

Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Blue +Sense
Brown -Sense
Yellow Shield

Warranty:
One-year limited

Approvals:
NTEP 21-016
OIML R60/2017-A-NL1-21.18

Options

205270 Load Cell, RLPC4SS-HE 10kg 10ft 2mv/v 350 Ohm SST HS IP69K NTEP III 5S
205271 Load Cell, RLPC4SS-HE 20kg 10ft 2mv/v 350 Ohm SST HS IP69K NTEP III 5S

205272 Load Cell, RLPC4SS-HE 50kg 10ft 2mv/v 350 Ohm SST HS IP69K NTEP III 5S
205273 Load Cell, RLPC4SS-HE 100kg 10ft 2mv/v 350 Ohm SST HS IP69K NTEP III 5S
