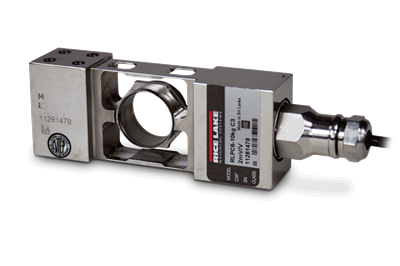

Rice Lake RLPC6 Stainless Steel, Single-Point Load Cell

$0.00

The Rice Lake RLPC6 single-point, stainless steel, hermetically sealed load cell is NTEP Certified and can be used in any application where moisture is a problem.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mv/v

Output Resistance:
960 (? 50) ohm, nominal

Input Resistance:
1,100 (? 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14? F to 104? F/ -10? C to 40? C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
200% Full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC

Total Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Hermetically sealed, IP69K

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White…………………….+ Signal
Red…………………….? Signal
Yellow……………………Shield

Max Deflection:
.006-.010

Max Platform Size:
24 in x 24 in

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP

Models

87027 Load Cell,SPT RLPC6-10kg 2 mv/v 1000 ohm 10ft SS HS FM IP69k NTEP III 5 S
87028 Load Cell,SPT RLPC6-20kg 2 mv/v 1000 ohm 10ft SS HS FM IP69K NTEP III 5 S
87029 Load Cell,SPT RLPC6-50kg 2 mv/v 1000 ohm 10ft SS HS FM IP69K NTEP III 5 S
87030 Load Cell,SPT RLPC6-100kg 2 mv/v 1000 ohm 10ft SS HS FM IP69K NTEP III 5 S
87031 Load Cell,SPT RLPC6-200kg 2mv/v 1000 ohm 10ft SS HS FM IP69K NTEP III 5 S
