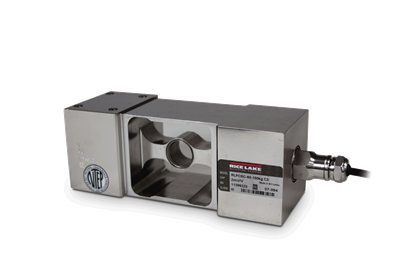

Rice Lake RLPCBC-60 Stainless Steel, Single Point Load Cell

$0.00

The Rice Lake RLPCBC-60 is a stainless steel, hermetically sealed, single point load cell that can be used in applications where moisture is a problem.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2 mv/v

Output Resistance:
960 (? 50) ohm

Input Resistance:
1,100 (? 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range:
14? F to 104? F/ -10? C to 40? C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
200% Full scale

Safe Sideload:
100% Full scale

Rated Excitation:
5-10 VDC

Total Error:
0.020% Full scale

Insulation Resistance:
5,000 megohms

Seal Type:
Hermetically sealed, IP69K

Cable Length:
10 ft (3 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
White…………………..+ Signal
Red……………………..? Signal
Yellow…………………..Shield
Blue…………………….+ Sense
Brown…………………..? Sense

Max Platform Size:
24 in x 24 in

Warranty:
Two-year limited warranty

Approvals:
FM
NTEP

Models

87022 Load Cell, SPT RLPCBC-60 50kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S
87023 Load Cell, SPT RLPCBC-60 100kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S
87024 Load Cell, SPT RLPCBC-60 250kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S
87025 Load Cell, SPT RLPCBC-60 500kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S
87026 Load Cell, SPT RLPCBC-60 1000kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S
