DISCONTINUED

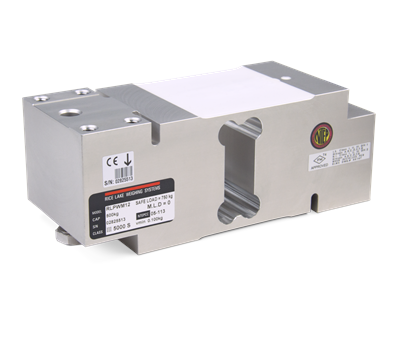

Rice Lake RLPWM12 Aluminum, Single-Point Load Cell

The Rice Lake RLPWM12 aluminum, single-point load cell is ideal for platform, hanging scale and other low-capacity beam applications with capacities ranging from 50 kilograms to 1000 kilograms.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
330-450 ohm, nominal

Input Resistance:
300-500 ohm

Material/Finish:
Aluminum

Temperature:
Compensated temperature range
14?F to 104?F/-10?C to 40?C
Operating range
0? F to 150? F/-18? C to 65? C

Safe Overload:
150% Full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Total Error:
0.02% full scale

Insulation Resistance:
1,000 megohms

Seal Type:
Environmentally sealed, IP67

Cable Length:
3.1 m (10 ft)

Cable Diameter:
0.190/PVC jacket

Cable Color Code:
Green………………….+ Excitation
Black…………………..? Excitation
Blue …………………….+ Sense
Brown ………………….? Sense
Red ……………………..+ Signal
White ………………….? Signal

Warranty:
Two-year limited warranty

Max Platform Size:
30 in x 30 in

Approvals:
FM
NTEP
